STYLE

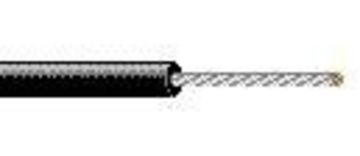

90℃ 30V TEFLON WIRE

DOCUMENT NO :

SIZE

28, 30, 32AWG×1C

ESTABLISHED DATE : 2000/05/18

UL STYLE

10231

UL FILE NO. :

CSA STYLE

CSA FILE NO :

Conductor

Construction

AWG

28

30

32

Material

----

Alloy Copper

Conductors No.

----

7

7

7

Conductors AWG

AWG

36

38

40

Conductors Size

㎜

0.127

0.100

0.08

O.D.

㎜

0.38

0.30

0.24

Insulation

Avg. Thick

㎜

0.080

0.080

0.086

Min. Thick

㎜

0.072

0.072

0.078

Diameter

㎜

0.540

0.460

0.413

Material

----

PFA

Color

----

BLACK OR OTHER COLOR

Conductor Resistance(Max.)

Ω/Km

216

348

544

Insulation Resistance(Min.)

MΩ/Km

100

100

100

Shrink back Test

250℃×3秒 收縮0.6㎜以下

Spark Test

0.5 KV

Insulation

UNAGED

Tensile Strength

2500 PSI MIN.( 1.76 Kg/ｍ㎡)

Elongation

200 % MIN.

AGED

Tensile Strength

UNAGED MIN. 85%( 168HRS× 287℃)

Elongation

UNAGED MIN. 85%( 168HRS× 287℃)
