    首頁 > > ALPHA-UL2576 Foil Shielding Communication Control Cable 鋁箔隔離通信、控制电缆

    ALPHA-1213C Awg 24 x 3C FOIL Shield 300V CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1 鋁箔隔離通信与控制電纜
    看原圖

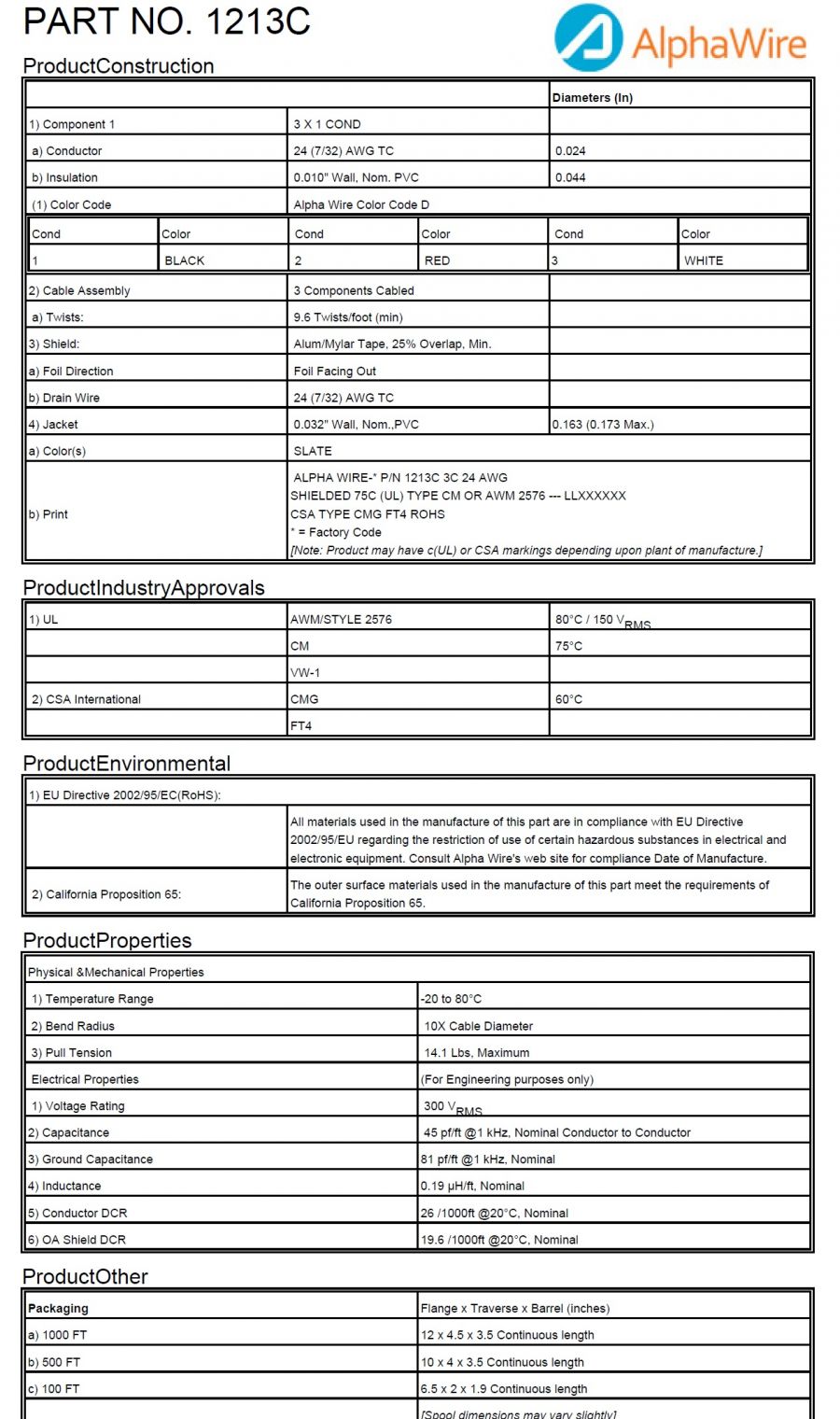

    		ALPHA-1213C



    商品編號: ALPHA-1213C

    ALPHA-1213C Awg 24 x 3C FOIL Shield 300V CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1 鋁箔隔離通信与控制電纜

    ProductConstruction
    　 Diameters (In)
    1) Component 1 3 X 1 COND 　
    a) Conductor 24 (7/32) AWG TC 0.024
    b) Insulation 0.010" Wall, Nom. PVC 0.044
    (1) Color Code Alpha Wire Color Code D
    Cond Color Cond Color Cond Color
    1 BLACK 2 RED 3 WHITE
    2) Cable Assembly 3 Components Cabled 　
    a) Twists: 9.6 Twists/foot (min) 　
    3) Shield: Alum/Mylar Tape, 25% Overlap, Min. 　
    a) Foil Direction Foil Facing Out 　
    b) Drain Wire 24 (7/32) AWG TC 　
    4) Jacket 0.032" Wall, Nom.,PVC 0.163 (0.173 Max.)
    a) Color(s) SLATE
    b) Print ALPHA WIRE-* P/N 1213C 3C 24 AWG
    SHIELDED 75C (UL) TYPE CM OR AWM 2576 --- LLXXXXXX
    CSA TYPE CMG FT4 ROHS
    * = Factory Code
    [Note: Product may have c(UL) or CSA markings depending upon plant of manufacture.]
    1) UL AWM/STYLE 2576 80°C / 150 VRMS
    　 CM 75°C
    　 VW-1 　
    2) CSA International CMG 60°C
    　 FT4 　
    1) EU Directive 2002/95/EC(RoHS):
    　 All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture.
    2) California Proposition 65: The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65.


    Part # Type Shielding Voltage AWG # of Elements Jacket Material Insulation Material Jacket Diameter Applicable Specifications
    1181C Multi-Conductor UNSHIELDED 300 22 12 PVC PVC 0.272 CA Prop 65, CSA CMG, CSA FT4, UL AWM 2576, UL CM, UL VW/1
    1212C Multi-Conductor FOIL 300 24 2 PVC PVC 0.156
    1213C Multi-Conductor FOIL 300 24 3 PVC PVC 0.163
    1214C Multi-Conductor FOIL 300 24 4 PVC PVC 0.174
    1215C Multi-Conductor FOIL 300 24 5 PVC PVC 0.187
    1216C Multi-Conductor FOIL 300 24 6 PVC PVC 0.201
    1217C Multi-Conductor FOIL 300 24 7 PVC PVC 0.201
    1218C Multi-Conductor FOIL 300 24 8 PVC PVC 0.214
    1219/10C Multi-Conductor FOIL 300 24 10 PVC PVC 0.244
    1219/12C Multi-Conductor FOIL 300 24 12 PVC PVC 0.251
    1219/15C Multi-Conductor FOIL 300 24 15 PVC PVC 0.27
    1219/20C Multi-Conductor FOIL 300 24 20 PVC PVC 0.298
    1219/25C Multi-Conductor FOIL 300 24 25 PVC PVC 0.332
    1219/37C Multi-Conductor FOIL 300 24 37 PVC PVC 0.376
    1219/40C Multi-Conductor FOIL 300 24 40 PVC PVC 0.39
    1219/50C Multi-Conductor FOIL 300 24 50 PVC PVC 0.427
    1219C Multi-Conductor FOIL 300 24 9 PVC PVC 0.228
    1243 Composite UNSHIELDED 300 22+22 3 PVC PVC 0.19
    1243/2C Multi-Pair FOIL 300 22 2 PVC PP 0.245
    1243/3C Multi-Conductor FOIL 300 20 3 PVC PE 0.21

    Get control of your communication and control applications

    Our line-up of standard communication and control cables gives you maximum choice and fewer tradeoffs. By offering you a comprehensive collection of insulation/jacketing materials, shielding options, and conductor counts, you can easily select the cable that meets your most demanding needs. We have cables that go beyond the ordinary to satisfy rigorous requirements of EMI performance, transmission distances, flexibility, and temperature extremes.

    Communication and Control Typical applications:

    • Audio systems: speakers, microphones, intercoms
    • Broadcast and studio
    • Data transmission: RS-232, 422, 485
    • CAD/CAM
    • Computer peripherals
    • Business machines
    • Security systems: alarms, cameras, sensors
    • Control systems
    • Instrumentation systems
    • Point-of-sale systems
    • Banking systems

    Flexible shielding options:

    • Unshielded
    • Overall foil shield
    • Overall foil/braid
    • Individual foil-shielded pairs
    • Individual foil-shielded pairs with overall foil/braid
    通信和控制应用，尽在掌握之中

    我们的系列标准通信和控制电缆为您提供最多的选择，减少对要求的妥协。通过为您提供多种的绝缘/护套材料、屏蔽选项和导线数量组合，您可以轻易地选择出满足您最苛刻需求的电缆。我们的电缆性能非凡，能满足电磁干扰、传输距离、柔韧性和温度极限的严格要求。

    通信和控制电缆的典型应用：

    • 音频系统：扬声器、麦克风、对讲机
    • 广播和播音室
    • 数据传输RS-232, 422, 485
    • 计算机辅助设计/计算机辅助制造
    • 计算机外设
    • 商业机器
    • 安防系统：警报器、摄像头、传感器
    • 控制系统
    • 测试仪表系统
    • 销售网点系统
    • 银行系统

    灵活的屏蔽选项：

    • 非屏蔽电缆
    • 整体铝箔屏蔽
    • 整体铝箔/编织屏蔽
    • 单独铝箔屏蔽线对
    • 单独铝箔屏蔽线对，外加整体铝箔/编织屏蔽

    低电容电缆，延长了传输距离，提高了信号完整性。
