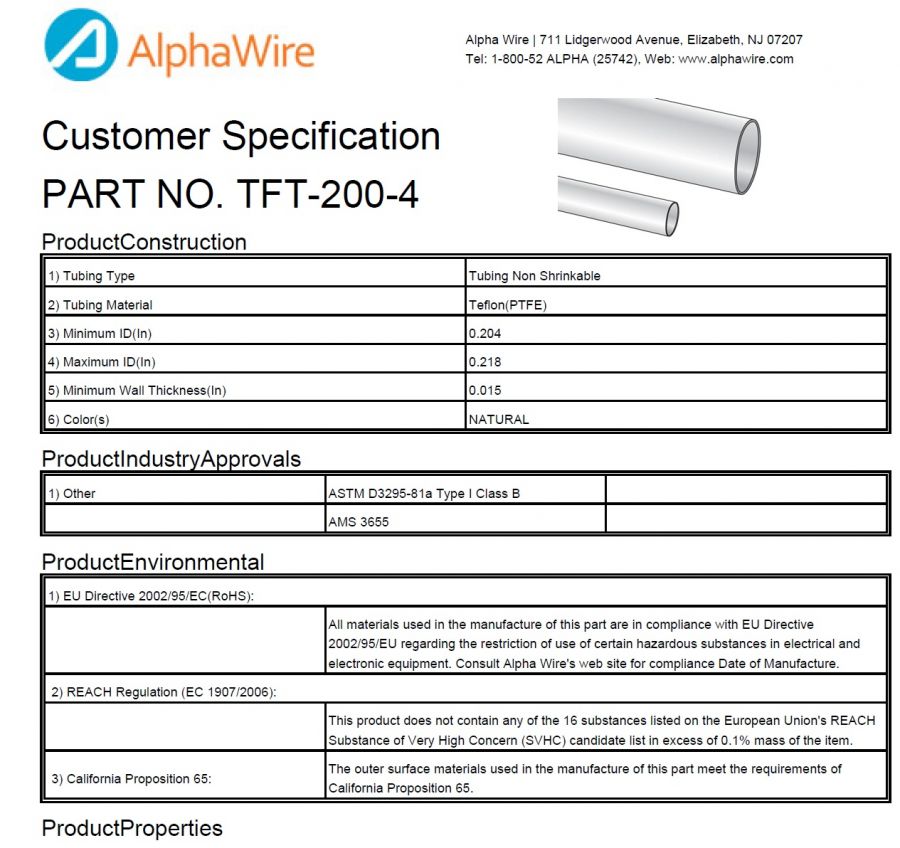

Construction
1) Tubing Type |
Tubing Non Shrinkable |
2) Tubing Material |
Teflon(PTFE) |
3) Minimum ID(In) |
0.204 |
4) Maximum ID(In) |
0.218 |
5) Minimum Wall Thickness(In) |
0.015 |
6) Color(s) |
NATURAL |
Applicable Specifications
1) Other |
ASTM D3295-81a Type I Class B |
|
|
AMS 3655 |
|
Environmental
1) EU Directive 2002/95/EC(RoHS): |
|
All materials used in the manufacture of this part are in compliance with EU Directive 2002/95/EU regarding the restriction of use of certain hazardous substances in electrical and electronic equipment. Consult Alpha Wire's web site for compliance Date of Manufacture. |
2) REACH Regulation (EC 1907/2006): |
|
This product does not contain any of the 16 substances listed on the European Union's REACH Substance of Very High Concern (SVHC) candidate list in excess of 0.1% mass of the item. |
3) California Proposition 65: |
The outer surface materials used in the manufacture of this part meet the requirements of California Proposition 65. |

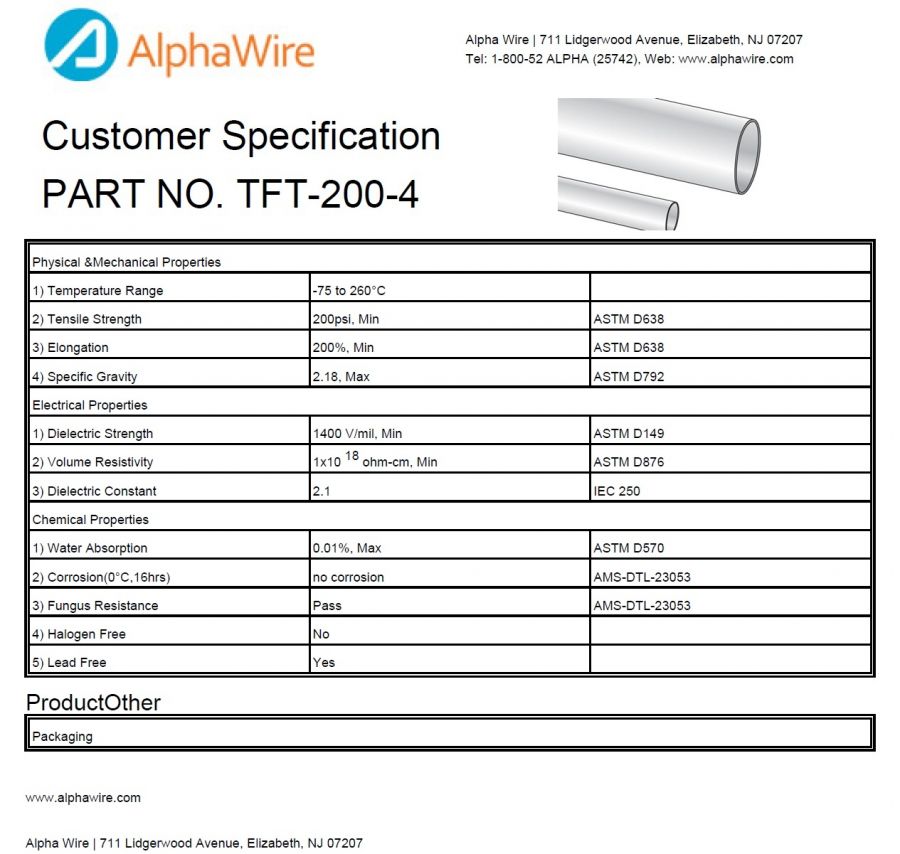

Properties
Physical & Mechanical Properties |
1) Temperature Range |
-75 to 260°C |
|
2) Tensile Strength |
200psi, Min |
ASTM D638 |
3) Elongation |
200%, Min |
ASTM D638 |
4) Specific Gravity |
2.18, Max |
ASTM D792 |
Electrical Properties |
1) Dielectric Strength |
1400 V/mil, Min |
ASTM D149 |
2) Volume Resistivity |
1x10 18 ohm-cm, Min |
ASTM D876 |
3) Dielectric Constant |
2.1 |
IEC 250 |
Chemical Properties |
1) Water Absorption |
0.01%, Max |
ASTM D570 |
2) Corrosion(0°C,16hrs) |
no corrosion |
AMS-DTL-23053 |
3) Fungus Resistance |
Pass |
AMS-DTL-23053 |
4) Halogen Free |
No |
|
5) Lead Free |
Yes |
|
Other
Offering protection from flammability, high heat, abrasion, and chemicals. Alpha tubing has the size for your wire and cable routing needs.
EU/China ROHS CERTIFICATE OF COMPLIANCE |
To Whom It May Concern: |
Alpha Wire Part Number: TFT-200-4 |
TFT-200-4, RoHS-Compliant Commencing With 2004/10/1 Production |
This document certifies that the Alpha part number cited above are manufactured in accordance with Directive 2002/95/EC of the European Parliament and of the Council of 27 January 2003, better known as the RoHS Directives, with regards to restrictions of the use of certain hazardous substances used in the manufacture of electrical and electronic equipment. The reader is referred to these Directives for the specific definitions and extents of these Directives. No Exemptions are required for RoHS Compliance on this item. Additionally, Alpha certifies that the listed part number is in compliance with the European Union’s Restriction of Hazardous Substances (RoHS) Directive, 2002/95/EC and all subsequent revisions and China RoHS “Marking for Control of Pollution by Electronic Information Products” standard SJ/T 11364-2006. |
Substance |
Maximum Control Value |
Lead |
0.1% by weight (1000 ppm) |
Mercury |
0.1% by weight (1000 ppm) |
Cadmium |
0.01% by weight (100 ppm) |
Hexavalent Chromium |
0.1% by weight (1000 ppm ) |
Polybrominated Biphenyls (PBB) |
0.1% by weight (1000 ppm) |
Polybrominated Diphenyl Ethers (PBDE) , |
|
Including Deca-BDE |
0.1% by weight (1000 ppm) |
|
The information provided in this document and disclosure is correct to the best of Alpha Wire's knowledge, information and belief at the date of its release. The information provided is designed only as a general guide for the safe handling, storage, and any other operation of the product itself or the one that it will become part of. The intent of this document is not to be considered a warranty or quality specification. Regulatory information is for guidance purposes only. Product users are responsible for determining the applicability of legislation and regulations based on their individual usage of the product. |
Authorized Signatory for the Alpha Wire Company: |
|
Dave Watson, Director of Engineering & QA |
2012/3/9
|
