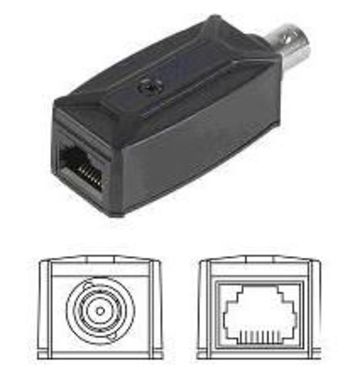

YSCT-IP01
YSCT-IP01, IP Extender over Coax被動式乙太網路同軸線延長器 (無源以太網同軸線延長器)
商品規格:
- 使用同軸電纜線傳送網路攝影機訊號
- 不需外接電源
- 相容802.3 10Base-T(10Mbps)
- 最遠傳輸距離達200公尺
IP Extender over Coax
Specifications:
IP01 is a low cost and easy, speedy solution to allow you use existing coax cable to send IP camera signal. Used in pairs with your RG59 cable to exceed the IEEE 802.3 10BaseT NEXT specification. The working range could up to 200 meters at 10Mbps speed.
Features:
- Send IP camera signal over existing coaxial cable.
- Passive, no power required.
- Exceeds 802.3 10BaseT NEXT specification, isolating the receiver from the transmitted signal.
- Transmission up to 200 meters (Max).
ITEM NO. |
IP01 |
VIDEO INPUT (BNC female Connector) |
1 |
Connector |
BNC Female Connector to RJ45 Jack |
Impedance |
50Ω to dual 100Ω or 75Ω to dual 100Ω or 93Ω to dual 100Ω |
Crosstalk |
> 30 dB |
Cable |
Coax Cable (RG59) |
DIMENSIONS W x H x D mm |
69x25x22 |
|
