商品型號: YSCT-IP01K
YSCT-IP01K, 以太網同軸線延長器套件 (4個IP01+1個IP01H), IP01 4 x IP01 IP extender + 1 x IP01H 5 Port Ethernet Switch Kit Package
IP01K 4 路乙太網路同軸線延長套件
- 使用同軸電纜線傳送網路攝影機訊號
- 不需外接電源
- 相容802.3 10Base-T(10Mbps)
- 最遠傳輸距離達200公尺

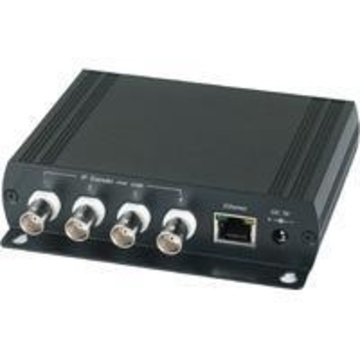

IP01H 網路交換器 4路10Base-T + 1路10/100 Base-T
- 5埠乙太網路交換器,具備4個BNC端子及1個RJ45端子
- RJ45端支援10/100Mbps 自動偵測功能,BNC端強制10Mbps搭配IP01使用
- Link/Active、Power等使用LED燈號,方便辨識狀態
- 符合 IEEE802.3及IEEE802.3u乙太網路標準規範
- Auto MDI/MDI-X 自動跳線功能(RJ45端)
商品特點:
產品型號 |
IP01 |
網路輸入 |
RJ45 x 1 |
傳輸介面 |
BNC x 1 (1 Vp-p,75 Ohm) |
阻抗 |
50Ω to Dual 100Ω or 75Ω to Dual 100Ω or 93Ω to Dual 100Ω |
串音 |
> 30 dB |
連接線材 |
同軸線 (RG59) |
尺寸 mm |
64 x 25 x 20.7 |
重量 g |
25 |
產品型號 |
IP01H |
傳輸速率 |
10Base-T and 100Base-TX |
傳輸介面 |
BNC x 4,RJ45 x 1 |
電源變壓器 |
DC 5V 1A |
最大消耗電流 |
500mA |
儲存溫度 |
-30℃~70℃ |
工作溫度 |
-10℃~45℃ |
尺寸 mm |
125 × 122.2 × 30 |
重量 g |
375 |
Product ID: IP01K
4 x IP01 IP extender + 1 x IP01H 5 Port Ethernet Switch Kit Package
Specifications:
IP01 is a low cost and easy, speedy solution to allow you use existing coax cable to send IP camera signal. Used in pairs with your RG59 cable to exceed the IEEE 802.3 10BaseT NEXT specification. The working range could up to 200 meters at 10Mbps speed.
IP01H 4 port Ethernet Switch is special design and built in 4 pieces IP01 (IP extender over coax) with BNC interface to send and extender TCP/IP signal over coaxial cable. Used in set with IP01 at IP camera side or any TCP/IP equipment, to send the IP signal up to 200 meters over your existing coax cable. 4 BNC port based on 10Mbps transmission speed, 1 port RJ45 to your NVR/computer based on 10/100Base-T.
Features:
IP01:IP Extender over Coax
- Send IP camera signal over existing coaxial cable.
- Passive, no power required.
- Exceeds 802.3 10BaseT NEXT specification, isolating the receiver from the transmitted signal.
- Transmission up to 200 meters (Max).
IP01H:Ethernet Switch with 4Port 10Base-T+ 1Port 10/100Base
- 4 Port Ethernet Switch with 4 port BNC and 1 port RJ45.
- RJ45 terminal support 10/100Mbps auto detect function
- BNC terminal support 10Mbps, must work with IP01.
- LED indication: Link/Active, Power.
- Complies with standard IEEE802.3 and IEEE802.3u.
- Auto MDI/MDI-X auto cross at RJ45 terminal.
-
