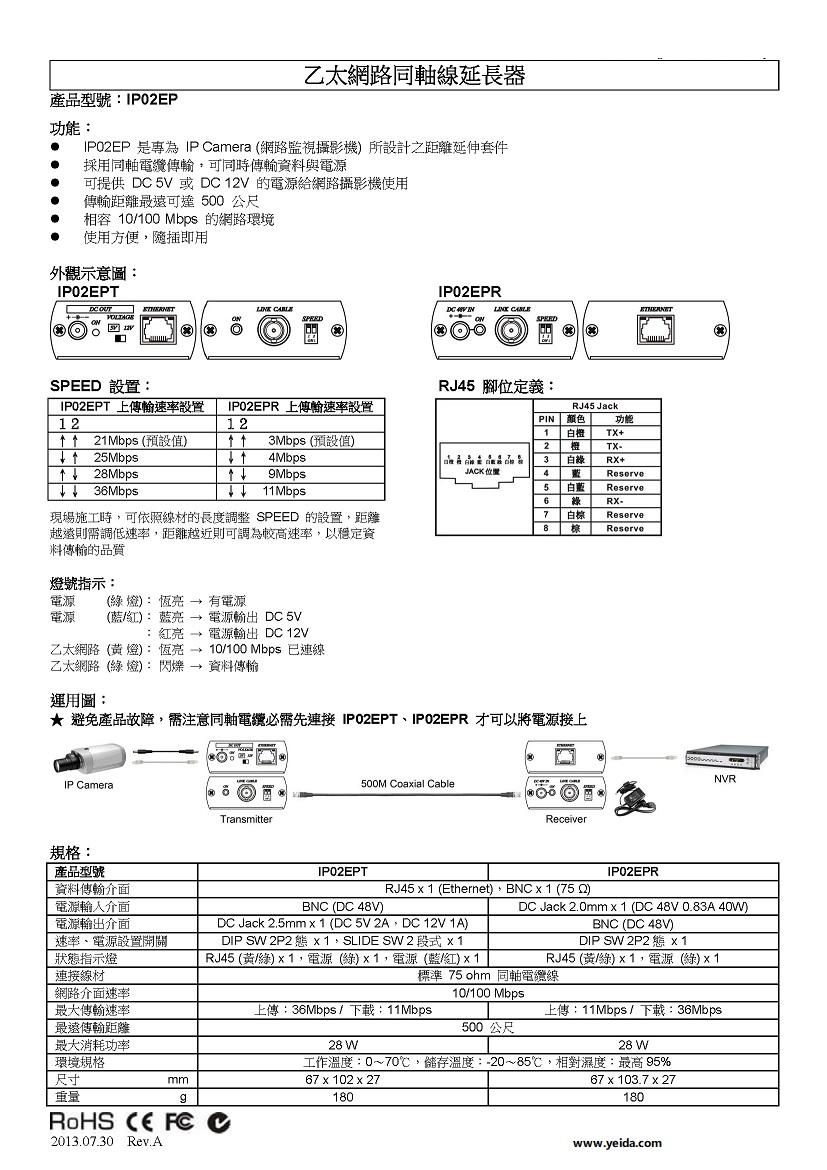

YSCT-IP02EP 乙太網路及電源同軸線延長器 IP & Power over Coaxial Extender
產品描述
功能:
- 採用同軸線傳輸,可同時傳輸資料與電源
- 可提供 DC 5V 或 DC 12V 的電源給網路攝影機使用
- 傳輸距離最遠可達 500 米
- 相容 10/100 Mbps 的網路環境
- 使用方便,隨插即用
產品型號 |
IP02ET |
IP02ER |
傳輸介面 |
RJ45 x 1 |
電源 輸入端子 |
BNC ( DC48V) |
DC JACK 2.0mm x 1 (C 48V 0.83A 40W) |
電源輸出 端子 |
DC JACK 2.5mm x 1 (DC 5V 2A,DC 12V 1A) |
BNC ( DC48V ) |
數據 , 電源 開關設置 |
DIP SW 2P2 x 1,SLIDE SW 2 step x 1 |
DIP SW 2P2 x 1 |
指示燈 |
RJ45 (Yellow/Green) x 1 電源 (Green) x 1, 電源輸出 (Blue/Red) x1 |
RJ45 ( Yellow/Green) 電源 ( Green) x 1 |
連接線材 |
75Ω 線材規格 |
網路速率 |
10/100 Mbps |
連接線材 |
75Ω 線材規格 |
網路速率 |
10/100 Mbps |
最大傳輸速率 |
Up連結:36Mbps, Down連結:11Mbps |
Up連結:11Mbps, Down連結:36Mbps |
最遠傳輸距離 |
500 M (Max) |
指示燈 |
網路端子 (Yellow/Green) x 1,電源 (Green) x 1 |
最大消耗電流 |
W |
W |
環境規格 |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
尺寸 mm |
|
|
重量 g |
IP02EP IP & Power over Coaxial Extender
Product Description
IP Extender with Power over Coax 500M
Features:
- Extend IP camera signal and power together over existing coaxial cable.
- Provide power to IP camera DC5V or DC12V.
- Long range transmission up to 500 meters (Max.)
- Support 10/100BASE-T transmission rate.
- Perfect to upgrade the analog camera system into IP CCTV application.
- Plug and play for easy installation.
ITEM NO. |
IP02ET |
IP02ER |
Transmission Interface |
RJ45 x 1 |
Power Input Connector |
BNC ( DC48V) |
DC JACK 2.0mm x 1 (C 48V 0.83A 40W) |
Power Output Connector |
DC JACK 2.5mm x 1 (DC 5V 2A,DC 12V 1A) |
BNC ( DC48V ) |
Data , Power Switch |
DIP SW 2P2 x 1,SLIDE SW 2 step x 1 |
DIP SW 2P2 x 1 |
LED Indication |
RJ45 (Yellow/Green) x 1 Power (Green) x 1, Power output (Blue/Red) x1 |
RJ45 ( Yellow/Green) Power ( Green) x 1 |
Linking Cable |
75Ω coax cable |
Ethernet Speed |
10/100 Mbps |
Linking Cable |
75Ω coax cable |
Ethernet Speed |
10/100 Mbps |
Data Rate |
Uplink:36Mbps, Downlink:11Mbps |
Uplink:11Mbps, Downlink:36Mbps |
Transmission Distance |
500 M (Max) |
LED Indication |
Ethernet (Yellow/Green) x 1,Power (Green) x 1 |
Power Consumption |
W |
W |
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95% |
Dimensions mm |
|
|
Weight g |
