Y 商品編號: SCT-IP05 SCT-IP05 DC 5V/12V 網絡攝像機以太網供電套件 POE Kit (IP05I Injector, IP05S Splitter)

YSCT-IP05

商品型號: IP05

DC 5V/12V 網絡攝像機以太網供電套件

商品規格:

包含專為支援PoE的網路攝影機及其他支援PoE的網路設備設計的乙太網路供電Injector和Splitter
符合IEEE 802.3af 標準 (最大供電功率15W)，可提供電源給支援PoE的網絡電話、無線網路基地台、網路攝影機等
支援10/100/1000M 三種速率傳送
支援PoE電功率達15W
電源LED燈號顯示
最遠距離可達100公尺

產品型號	IP05I	IP05S
電源與網路輸入	RJ45
電源與網路輸出	RJ45	RJ45，DC Jack
RJ45腳位定義	網路：Pins 1，2 、 3，6 、 4，5 、 7，8
RJ45腳位定義	電源：Pins 4，5 、 7，8
最遠傳輸距離	100 公尺
LED 燈號指示	電源：藍色，PoE：綠色	電源：藍色 (5V)，紅色 (12V)
PoE 標準	IEEE 802.3af
電源輸出	DC 48V	DC 5V / 12V 12.95W
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	117 × 107 × 36	67 x 87 x 27
重量　 g	420	145

Product ID: IP05

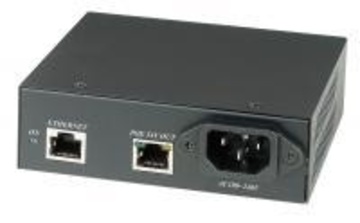

POE Kit (IP05I Injector, IP05S Splitter)

Specifications:

This IP05 POE kit is a cost-effective solution to send data and power over original Ethernet network but eliminates the need of power cable and converter. It is perfect for network application such as IP camera, VoIP and wireless access point This POE kits include two devices, the injector IP05I sends both power and data over signal CAT5 cable to your IP device. The splitter separates the data and power and delivers them to the IP device.

Features:

Mix Ethernet and power into RJ45 port.
Include IP05I POE injector and IP05S POE splitter.
Compatible IEEE 802.3af (12.95W) POE standard, PSE/PD.
IP05I provides DC 48V power over RJ45 Ethernet cable to device with Ethernet port.
IP05S splits the DC48V power over RJ45 Ethernet cable into DC 5V/12V output.
Adjustable two different output voltage options (5V/1.8A, 12V/1A) to fit various devices.
Supports POE power up to 12.95 Watts for POE port.
Support 10/100/1000 BASE-T transmission rate.
Power input LED indication.
Distance up to 120 meters (Max)

ITEM NO.	IP05I	IP05S
Power & Data Input	RJ-45
Power & Data Output	RJ-45	RJ45, DC jack
Data Link	Pins 1,2、3,6、4,5、7,8
Power Link	Pins 4,5、7,8
Transmission Range	120 Meters (Max.)
LED Indication	Power: blue	Power: blue -5V, Red-12V
POE	IEEE 802.3af Standard
Power Output	DC 48V	DC5V/DC12V 12.95W
Temperature	Operation: 0 to 55°C, Storage: -20 TO 85°C, Humidity: up to 95%
Dimensions W x H x D mm	101×115×36 mm	87 x 67 x 27mm
Weight g	420g	145g
