商品規格:

• 設備端：2芯端子座＋BNC母座，線材端：3 芯端子座＋BNC母座
• 兩段式保護：AC/DC 130V(電源)，AC/DC 12V (影像)
• 最大輸入電壓：AC40V(最大)，DC 56V(最大)
• 適用攝影機之電流源最大2A

Specifications:

Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.

Features:

• Performs a different function than grounding requirements.
• Protects equipment from high voltage surges from nearby lightning strikes.
• Two stage protection: 130V, AC/DC 12V
• Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc.

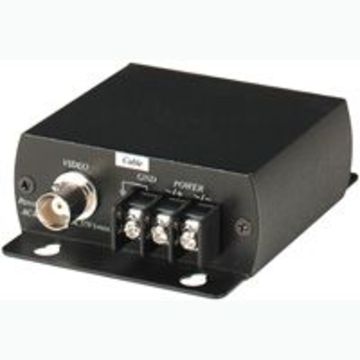

• 3 pin terminal + BNC female to 4 pin terminal + BNC female.
• Two stage protection, AC/DC 130V, AC/DC12V
• Max power input AC 40V(MAX), DC 56V(MAX).
• Max current up to 2Amp.
