商品規格:

• 使用一條網路線可延長USB全速信號設備最遠可達70公尺，低速鍵盤、滑鼠距離最遠可達 300 公尺
• 標準USB 1.1
• 可延長USB介面設備，如鍵盤、滑鼠、攝影機及印表機等
• 距離超過 50 公尺以上，UE01R 須外接電源供應器
• 使用低速 USB 裝置，如鍵盤和滑鼠距離最遠可達 300 公尺
• 使用高速 USB 裝置，如 USB 集線器、隨身碟、電競滑鼠等距離最遠可達 70 公尺

　

Specifications:

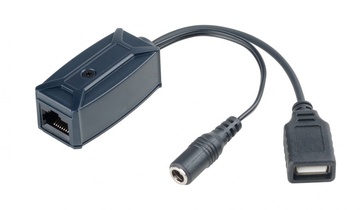

The UE01 USB extender design for extends USB device with full speed up to 70 meters or low speed up to 300 meters from the location of your computer over CAT5/5e/6 UTP cable. It could eliminate the 5 meters distance limitation of USB. It is optimized for applications where two devices, such as the keyboard and mouse, must be operated remotely.

Features:

Extend one USB device with full-speed 70 meters(Max),low-speed 300 meters (Max) over CAT5/5E cable.

USB 1.1 compliant.

Distance less 50 meters, no external power required.

Distance over 50 meters, external power adapter requested at UE01T remote unit.

Low speed keyboard mouse equipments up to 300 meters, external power adapter requested for UE01T remote unit.

Application for extend USB peripheral devices, such as keyboard, mouse, IP camera, printer, etc.

Package including remote unit and local unit without power adapter.
