商品型號: TPP016
1U 16路無源機架式視頻雙絞線傳輸器
商品規格:
- 標準19” 1U 機架式
- 可搭配本公司主動遠距離傳輸器TTA111VT/ TTA111AVT距離可達600公尺
- 被動式無需電源
- 內建濾波器可有效抵抗干擾
|
|
|
|
|
|
|

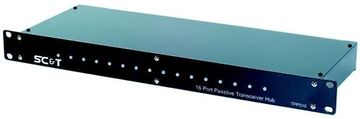

Product ID: TPP016
16 Port Passive Transceiver Hub In 1U Rack Mounting Panel
Specifications:
- Video Input Port: 16 Port (Terminal Block)
- Video Output Port (BNC Connector): 16 Port, 1Vp-p, 75 ohms
- Recommend Cable: CAT 5 Cable 4 Pairs (24 AWG)
- Dimension W x H x D mm: 482x170X44 (1U)
- Weigh: 2200g
- Material: Metal Black
Features:
- Built in 16 port passive transceivers in 1U 19” rack mounting panel.
- As a rack mounting passive transmitter hub, use with active receiver at distance up to 1000 meters.
- Passive, no power required.
- Built in a highly balanced mode of video transmission for extra interference immunity.
|
|
|
|
