    首頁 > > Y SCT- CCTV 4路雙絞線傳輸 (被動系列) 4 Channel CCTV Twisted Pair Transmission ( Passive Series)

    TTP414VH 四路被動式雙絞線影像傳輸器(4BNC母-RJ45母)抗干擾型 4 Channel Video Transceiver With Extra Interference Rejection
    看原圖
    YSCT-TTP414VH

    商品型號: TTP414VH

    抗干擾型4路無源視頻雙絞線傳輸器

    商品規格:
    • 傳輸距離最遠可達300公尺
    • 搭配主動式遠距離雙絞線傳輸器 TTA111VH,TTA111VR,TTA111AVR,TTA414VR,TPA008,TPA016有效距離可達1公里
    • 被動式無需電源
    商品特點:
    • 4個BNC母座轉1個RJ45母座。
    • 可平衡因為遠近不同距離輸入DVR所產生阻抗失衡的干擾
    • 可濾除傳輸過程中電源、控制信號、音頻等的干擾

    產品型號 TTP414VH
    影像輸入 BNC x 4
    1 Vp-p,75 Ohm
    RJ45影像輸入 X
    RJ45影像輸出 RJ45 x 1
    傳輸距離 300公尺
    傳輸線材 CAT 5 網路線 (AWG24)
    電源 X
    尺寸 mm 138 x 76.4 x 28
    重量 g 180
    Product ID: TTP414VH

    4 Channel Video Transceiver With Extra Interference Rejection

    Specifications:
    • 4 BNC female to 1 x RJ45 female.
    • Four passive transceivers in one product.
    • Perfect work with DVR to immunity DVR interference.
    • Built in a highly balanced mode of video transmission, which is immune to interference from these, and other sources of noise: Data signals, other video signals, nearby power, ringing telephones, fluorescent lights, transformers, and more...
    Features:
    • One CAT5 cable to send 4 video signal to instead of coaxial cable.
    • These smart cabling system transmission are an alternative solution to coaxial and fiber based systems, providing following benefits:
      • Fast, easy installation, saving time and money.
      • Substantial savings on the cost of the cable itself.
      • Superb quality on long range transmission.
    • Passive Video Transceiver (no power required), transmission range color 400 meters, B/W 600 meters via CAT 5 UTP Cable.

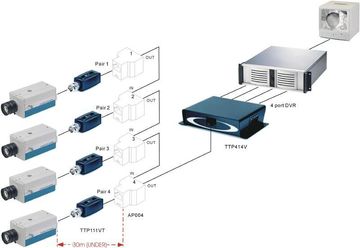

    • Perfect for 4 cameras to Hub CCTV Distribution Application
