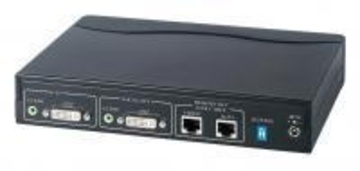

YSCT-DE01

商品型號: DE01

DVI視音頻雙絞線延長器

商品特點:

DE01為DE01R配合DE01T所組成之有源DVI-D距離延伸傳輸套件。
採用兩條網線傳輸，傳輸距離最遠可達50米。
分辨率最高可到1920x1200(40米)。
具備1組DVI輸出與1組RJ45輸出
具備立體音頻傳輸功能。
支持DDC、EDID與熱插入偵測。

ITEM NO.	DE01T		DE01R
Video Amplifier Bandwidth	1.65 GHz
Resolution	Up to 1920 x 1600
Input Video Signal	1.2 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Link Cable Distance	CAT5E 45M , CAT6 50M @1920 x 1080,60Hz
DVI Cable Distance	28 AWG DVI Cables 6M @1920 x 1080,60Hz
DVI Connector	DVI-D x 2	DVI-D 29 pin
Stereo Audio Connector	Stereo Jack x 2	Stereo Jack x 1
Link Connector	RJ-45 Shielded x 2	RJ-45 Shielded x 2
Power Supply	5V DC 1200mA Regulated (External)
Power Consumption	600mA (Max)	200mA (Max)
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
DIMENSIONS W x H x D mm	225 x 165 x 40	145x95x37
Weight g	820g	320g

Product ID: DE01

DVI CAT5 Extender

Specifications:

Our Smart DE01 DVI CAT5 Extender with audio function is using two CAT5E/6 cables to extend your DVI display up to 50 meters from your HDTV DVI or HDMI source. DVI transmitter with 2 output, one is DVI output and the other is RJ45 CAT5 cable output for remote display. Under non-HDCP operation mode, the application could be 1 input to 2 output distribution. Both of output built in signal boost function, the working resolution up to 1920 x 1600.

Features:

Extends any DVI compliant device over two CAT5E/6 cables.
Transmission range up to 50 meters at hi resolution 1920 x 1080.
Support analog stereo audio: 20Hz – 20Khz.
Including 1 x transmitter, 1 x receiver and 2 x 5V power adapters.
Dual output: 1 x DVI loop output for local, plus 1 x CAT5 RJ45 output for remote side.
Built in equalization and signal boost function.
Hi quality digital video over CAT5 without any signal loss.
Support DDC, EDID and hot plug detection.
Use CAT5 cable for DDC and control signals
HDCP 1.1 compliant.

ITEM NO.	DE01T		DE01R
Video Amplifier Bandwidth	1.65 GHz
Resolution	Up to 1920 x 1600
Input Video Signal	1.2 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Link Cable Distance	CAT5E 45M , CAT6 50M @1920 x 1080,60Hz
DVI Cable Distance	28 AWG DVI Cables 6M @1920 x 1080,60Hz
DVI Connector	DVI-D x 2	DVI-D 29 pin
Stereo Audio Connector	Stereo Jack x 2	Stereo Jack x 1
Link Connector	RJ-45 Shielded x 2	RJ-45 Shielded x 2
Power Supply	5V DC 1200mA Regulated (External)
Power Consumption	600mA (Max)	200mA (Max)
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
DIMENSIONS W x H x D mm	225 x 165 x 40	145x95x37
Weight g	820g	320g
