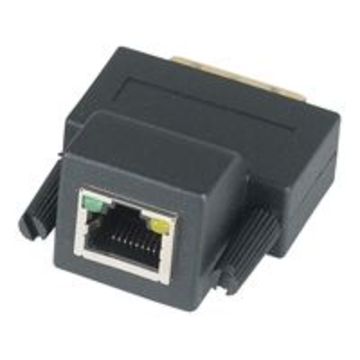

無源DVI雙絞線延長器 70米 DVI CAT5 Extender over Single CAT5 cable 70 Meters

YSCT-DE01ERK

商品型號: DE01ERK

無源DVI雙絞線延長器 70米

商品規格:

DE01ERK為DE01ER搭配DE01E之被動加強型DVI-D距離延伸套件
不需額外供給電源，即插即用免設定調整
解析度最大支援至1920 x 1200 (50公尺)
使用單條網路線傳輸，距離最遠可達70公尺 (800x600)

DE01E 搭配 DE01E
解析度	距離 (公尺)
800 x 600	70
1024 x 768	65
1280 x 1024	50
1440 x 900	50
1600 x 900	50
1920 x 1200	50

產品型號	DE01ER
頻寬	1.65 Gbps ( DVI 1.1)
支援解析度	1920 x 1200 @ 60 Hz
輸入TMDS訊號	1.2 Vp-p
輸入DDC訊號	5 Vp-p (TTL)
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
傳輸距離	70M @ 800 x 600，50M @ 1920 x 1200
輸入/輸出介面	DVI-D x 1 (25 Pin)
傳輸介面	RJ45 x 1
尺寸 mm	56.5 × 40 × 21.6
重量 g	50

Product ID: DE01ERK

DVI CAT5 Extender over Single CAT5 cable 70 Meters

Specifications:

The DVI CAT5 extender is to extend your PC DVI transmission distance up to 70 meters with resolution 1024x768. With DVI Adaptors, users can transmit high quality digital video of PC applications thru one cost effective CAT5/5e to the remote monitor or projector, instead of using short and expensive DVI cables. With embedded EDID inside the adaptor, your PC will continue to send the digital video even when the monitor is not connected. The user can then disconnects the monitor, place it in a remote location and reconnect it without rebooting the operating system.

Features:

Include DE01E transmitter, DE01ER receiver., used in pairs via one CAT5/5e cable to send DVI signal.
DE01ER as active receiver for high performance.
No external power required.
Support high resolution up to 1920 x 1200.
Support long distance up to 70 meters at 1024x768.

DE01E to DE01ER
Resolution	Distance(Meter)
1024 x 768	70
1280 x 1024	60
1440 x 900	60
1600 x 900	50
1920 x 1200	50

ITEM NO.	DE01ERK
Video Bandwidth	1.65 Gbps ( DVI 1.1)
Resolution	Up to 1920 x 1200 @60hz
Input TMDS Video Signal	1.2 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Link Cable Distance	1024x 768@70M, 1920x1200@50M
DVI Connector	DVI-D 29 pin
Link Connector	RJ-45 Shielded x 1
Power Supply	X
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
DIMENSIONS W x H x D mm	DE01E:150 x 40 x 20, DE01ERK 40 × 56 × 24.5
Weight g	DE01E: 45g ,DE01ERK:50g
