DVI視頻&USB雙絞線延長器 DVI with USB 1.1 CAT5 Extender over two CAT5

YSCT-DE01U

商品型號: DE01U

DVI視頻&USB雙絞線延長器

商品規格:

使用兩條網路線傳輸，傳輸距離最遠約可達到45公尺
DVI-D影像解析度最高支援到 1920 x 1200
內建3埠 USB 集線器及1組 USB 聲音

產品型號	DE01UT	DE01UR
最大支援解析度	1920 x 1200 @ 60 Hz
最遠傳輸距離	45公尺
輸入介面	USB Type B x 1，DVI-D x 1 (25 Pin)	RJ45 x 2
輸出介面	RJ45 x 2	DVI-I x 1 (29 Pin) Digital Only USB Type A x 3，3.5mm Phone Jack x 4
最大消耗電流	X	500mA
電源變壓器	X	DC 5V 2A
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	62.8 × 83.1 × 29.5	145 × 95.3 × 37
重量　 g	150	320

Product ID: DE01U

DVI with USB 1.1 CAT5 Extender over two CAT5

Specifications:

The DVI with USB CAT5 Extender allows DVI video and USB signals be transmitted up to 45 meters via two CAT5 UTP cable. Used in pairs, the Extender is used in home or commercial applications as a smart, fast and cost-effective, eliminates costly and bulky DVI, USB cable.

Applications for classroom projector systems, boardroom systems, collaborative PC systems C-training systems, and tradeshows PC demo systems and medical information systems.

Features:

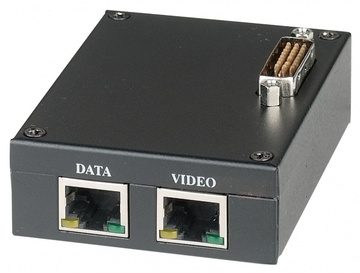

Include DE01UT transmitter, DE01UR receiver, used in pairs via two CAT5E/6 cable to send DVI and USB signal.
Built in 3 port USB Hub & USB Audio.
Support high resolution up to 1920 x 1200.
Transmission distance up to 45 meters at 1920 x 1080.

ITEM NO.	DE01U
Resolution	Up to 1920 x 1200 @60Hz
Link Cable Distance	45 Meters
Power Supply	5V DC 2A Regulated
Power Consumption	2000mA (Max)
Temperature	Operation: 0 to 55 C, Storage: -20 TO 85 c, Humidity: up to 95%
DIMENSIONS W x H x D mm	DE01UT : 82.5 × 62.5 ×29.5 mm	DE01UR : 145 × 96 ×37 mm
Weight g	DE01UT : 150g	DE01UR : 330g
