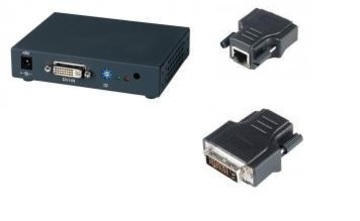

DVI視頻1進3出雙絞線延長分配器 DVI CAT5 Extender 1 in 3 out

YSCT-DE03

商品型號: DE03

DVI視頻1進3出雙絞線延長分配器

商品規格:

3 輸出：2組DVI-D近端輸出加上1組RJ45遠端輸出
搭配DE01E接收器，經由網路線傳輸距離最高達30公尺
使用DVI線輸入/輸出距離最遠可達15公尺

產品型號	DE03T	DE01E
頻寬	1.65 Gbps ( DVI 1.1)
傳輸距離	CAT.5e 15公尺@1600x1200，CAT.5e 30公尺 @1024x 768
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
輸入/輸出傳輸介面	DVI-I x 3 (29 Pin) Digital Only，RJ45 x 1	DVI-D x 1 (25 Pin)，RJ45 x 1
最大支援解析度	1600 x 1200	1920 x 1200
輸入TMDS訊號	X	1.2 Vp-p
輸入DDC訊號	X	5 Vp-p (TTL)
LED	綠燈 x 1 (ID)，紅燈 x 1 (Power)	X
最大消耗電流	680mA	X
電源變壓器	DC 5V 2A	X
尺寸 mm	120.4 x 103.5 x 25.5	51.3 x 41 x 23.3
重量　 g	295	48

Product ID: DE03

DVI CAT5 Extender 1 in 3 out

Specifications:

The DVI Distributor receives and reconstructs (equalizing & re-clocking) a DVI signal and distributes it to three identical outputs. It can be perfectly cascaded with one another in order to obtain more DVI outputs (at least 6 tiers). It will also process (read & store) the EDID information sent over the Data Display Channel (DDC).

Features:

Connects a DVI video source to 3 DVI compatible displays.
3 outputs: 2 x DVI-D, plus 1 x CAT5 RJ45 output for remote side.
Each set including 1 x DE03T distributor, 1 x DE01E CAT5 receiver and 1 x 5V power adapter.
DE01E as DVI CAT5 receiver at remote side, range up to 30 meters.
Extends 15meters of input/output DVI cable.
Cascade connection several units for larger displays with great picture quality.
Reads and remembers the EDID of displays.

ITEM NO.	DE03T
Video Bandwidth	1.65 Gbps ( DVI 1.1)
Resolution	Up to 1600 x 1200
Input Connector	1 x DVI-I
Output Connector	2 x DVI-I, RJ-45 Shielded x 1
LEDs	1 x Green (ID), 1 x Red (Power)
Link Cable Distance	CAT5E 15M@1600x1200 CAT5E 30M@1024x 768
DVI Connector	DVI-D 29 pin
Link Connector	RJ-45 Shielded x 1
Power Supply	5VDC 2AMP
Power Consumption
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
DIMENSIONS W x H x D mm	88 x 25 x 12
Weight g	300g

ITEM NO.	DE01E
Video Bandwidth	1.65 Gbps ( DVI 1.1)
Resolution	Up to 1920 x 1200
Input TMDS Video Signal	1.2 volts p-p
Input DDC Signal	5 volts p-p (TTL)
Link Cable Distance	CAT5E 15M@1600x1200 CAT5E 30M@1024x 768
DVI Connector	DVI-D 29 pin
Link Connector	RJ-45 Shielded x 1
Power Supply	X
Power Consumption
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
DIMENSIONS W x H x D mm	50 x 40 x 20
Weight g	45g
