    YSCT-SR02 HD-SDI 延長器 HD-SDI Extra Long Range Repeater
    看原圖
    		YSCT-SR02


    商品編號: SCT-SR02

    SCT-SR02 HD-SDI 延長器 HD-SDI Extra Long Range Repeater
    商品型號: SR02 SDI信號中繼器 商品規格: SR02為3G/HD SDI中繼器 輸入支援 SDI (SMTP 259M)、HD-SDI (SMTP 292M)、3G-SDI (SMTP 424M) 影像支援 NTSC、PAL、720p、1080i、1080p 內建RS-485控制，單向傳輸速率最高可達57600，此功能只能應用在2台以上SR02之傳輸運用 3.0 Gbps可延伸100公尺，1.5 Gbps可延伸200公尺，270Mbps可延伸400公尺 中繼器可經由同軸線供電，最多串接5台 檢視完整表格 產品型號 SR02 支援規格 SMTPE 259M - SDI (143 to 360 Mbps) SMTPE 344M - (540 Mbps) SMTPE 292M - HD-SDI (1.485 Gbps) SMTPE 372M - Dual Link HD-SDI (2.97 Gbps) SMTPE 424M - Dual Speed HD-SDI (2.97 Gbps) SDI 輸入端子 BNC x 1 (1 Vp-p，75 Ohm) SDI 輸出端子 BNC x 1 (1 Vp-p，75 Ohm) 消耗電流 70mA (Max) 電源變壓器 DC 12V 1.2A 尺寸 mm 67 x 91 x 27 重量 g 160
    Product ID: SR02

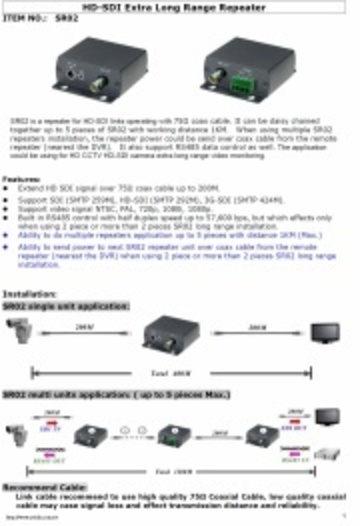

    HD-SDI Extra Long Range Repeater

    Specifications:

    SR02 is a repeater for HD-SDI links operating with 75Ω coax cable. It can be daisy chained together up to 5 pieces of SR02 with working distance 1KM. When using multiple SR02 repeaters installation, the repeater power could be send over coax cable from the remote repeater (nearest the DVR). It also support RS485 data control as well. The application could be using for HD CCTV HD-SDI camera extra long range video monitoring.

    Features:

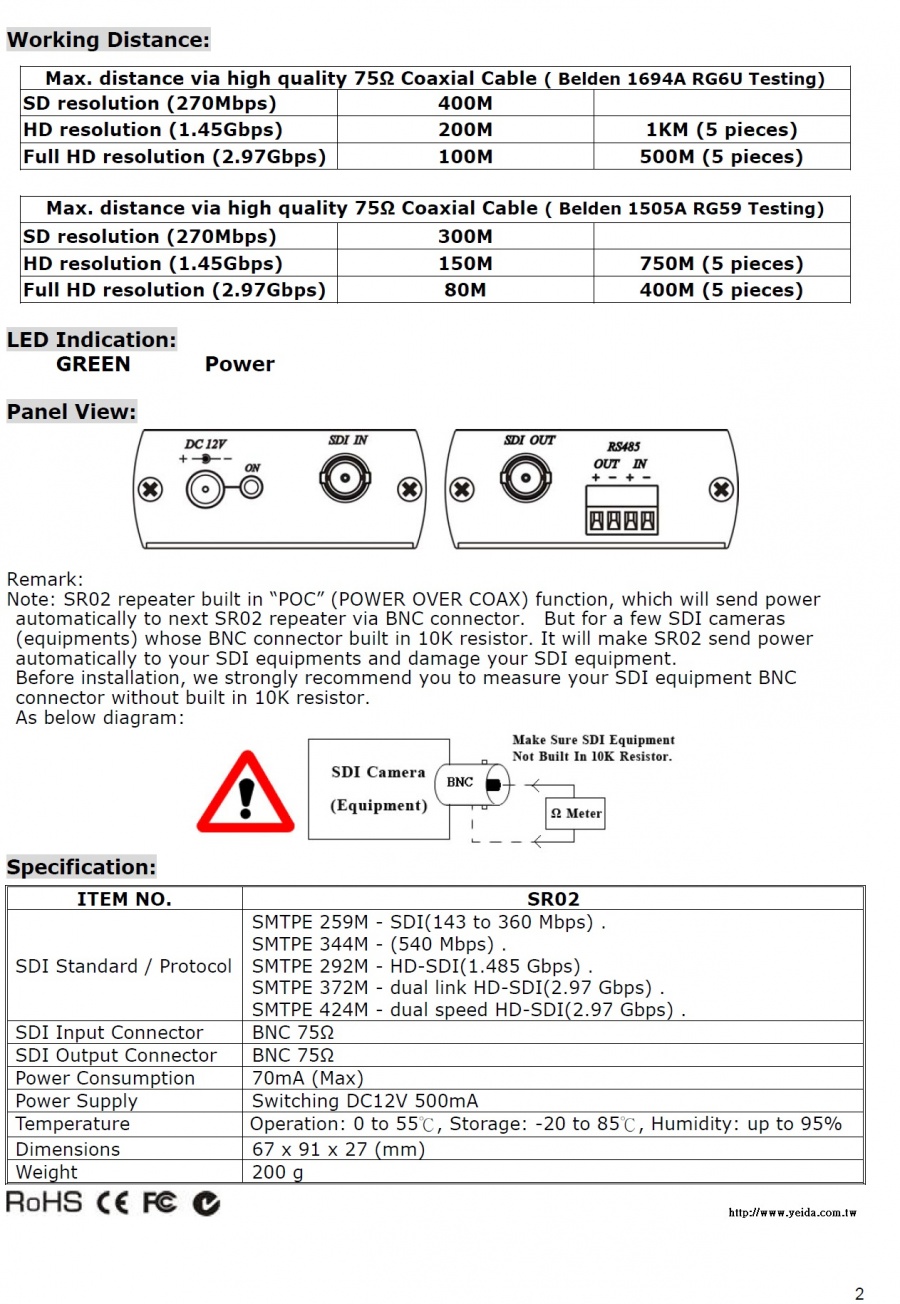

    Max. distance via high quality 75Ω Coaxial Cable ( Belden 1694A RG6U Testing)
    SD resolution (270Mbps) 400M 　
    HD resolution (1.45Gbps) 200M 1KM (5 pieces)
    Full HD resolution (2.97Gbps) 100M 500M (5 pieces)
    　
    Max. distance via high quality 75Ω Coaxial Cable ( Belden 1505A RG59 Testing)
    SD resolution (270Mbps) 300M 　
    HD resolution (1.45Gbps) 150M 750M (5 pieces)
    Full HD resolution (2.97Gbps) 80M 400M (5 pieces)













    　
    ITEM NO. SR02
    SDI Standard / Protocol SMTPE 259M - SDI(143 to 360 Mbps) . SMTPE 344M - (540 Mbps) . SMTPE 292M - HD-SDI(1.485 Gbps) . SMTPE 372M - dual link HD-SDI(2.97 Gbps) . SMTPE 424M - dual speed HD-SDI(2.97 Gbps) .
    SDI Input Connector BNC 75Ω
    SDI Output Connector BNC 75Ω
    Power Consumption 70mA (Max)
    Power Supply Switching DC12V 500mA
    Temperature Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
    Dimensions 67 x 91 x 27 (mm)
    Weight 200 g
    • Extend HD SDI signal over 75Ω coax cable up to 200M.
    • Support SDI (SMTP 259M), HD-SDI (SMTP 292M), 3G-SDI (SMTP 424M).
    • Support video signal NTSC, PAL, 720p, 1080i, 1080p.
    • Built in RS485 control with half duplex speed up to 57,600 bps, but which effects only when using 2 piece or more than 2 pieces SR02 long range installation.
    • Ability to do multiple repeaters application up to 5 pieces with distance 1KM (Max.)
    • Ability to send power to next SR02 repeater unit over coax cable from the remote repeater (nearest the DVR) when using 2 piece or more than 2 pieces SR02 long range installation.
    • Reclocker to resynchronize the signal—bringing it back to its original condition.
