    首頁 > > YSCT- 主動雙絞線傳輸器 Active Video & Audio & Data Twisted Pair Transmission

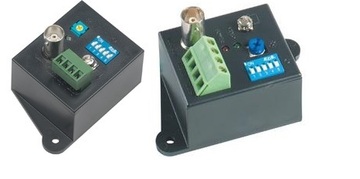

    TTA111V 單路有源視頻雙絞線傳輸器 Active Video Twisted Pair Transmission
    看原圖
    		YSCT-TTA111V

    商品型號: TTA111V

    單路有源視頻雙絞線傳輸器

    商品規格:
    • 傳輸距離最遠可達1.5公里
    • TTA111VT發射器內建五段可調式亮度補償功能
    • TTA111VR接收器內建亮度補償及影像訊號五段可調式放大功能
    • 內建突波吸收器及接地端子保護
    • 內建LED：電源顯示
    商品特點:
    • 本產品支持數據控制信號傳輸
    　
    產品型號 TTA111VT TTA111VR
    影像輸入 BNC x 1 (1 Vp-p，75 Ohm)
    消耗電流 40mA
    電源變壓器 DC 12V 500mA 穩壓變壓器
    色彩補償調整建議 1 0~300M 2 300~600M 3 600~900M 4 900~1200M 5 1200~1500M
    亮度補償建議 100 I.R.E. (MAX) X
    線材建議 CAT 5 網路線 (24AWG)
    尺寸 　　　 mm 43.2 x 45.2 x 74
    重量 g 58 60





    Product ID: TTA111V - TTA111VT+TTA111VR

    Active Video Twisted Pair Transmission

    Specifications:
    • Three position range switch for gain select on transmitter.
    • Five position distance range switch on Receiver, brightness adjustment, two video output.
    • Built in transient protection and ground lifting.
    • �� System is integrated with alarm sensor (PIR, Magnetic, etc...) or RS485/422 data
    Features:
    • Smart twisted pair transmission products are designed for CCTV signal transmission over unshielded twisted pair wire (CAT 5 network cable).
    • These smart cabling system transmission are an alternative solution to coaxial and fiber based systems, providing following benefits:
      • Fast, easy installation, saving time and money.
      • Substantial savings on the cost of the cable itself.
      • Superb quality on long range transmission.
    • Active Video Transceiver ( power required), transmission range color 1500 meters, B/W 2400 meters via CAT5 UTP cable.
