商品型號: TTA111VRA
自動增益有源雙絞線接收器
商品規格:
- 搭配被動式TTP111VE/V/VT系列被動式傳輸器,距離最遠可達1.5公里
- 搭配主動式遠距離TTA111VT傳輸器,有效距離可達2公里
- 內建最新數位處理元件,可自動調整影像訊號至最佳畫質輸出
- 因應個別需求,另增可微調平衡及亮度功能
- 內建突波吸收保護
- 內建多色LED顯示燈顯示當前狀況,方便施工障礙排除
商品特點:
- 具有自動均衡與手動均衡模式。
- 支持NTSC & PAL視頻格式。

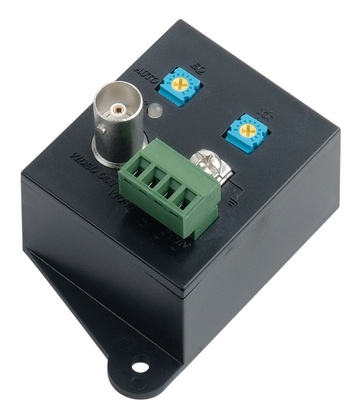

Product ID: TTA111VRA
Digital Auto Gain Active Receiver
Specifications:
Use with passive transmitter to send video signal up to 1.5KM over UTP cable.
Use with active transmitter TTA111VT to send video signal up to 2.0KM over UTP cable.
Dual control option for optimum video quality: Auto gain or manual adjustment.
Auto gain control without any adjustment.
Manual control: equalizer and brightness adjustment.
Built in transient protection and grounding lifting.
Perfect for high resolution TVL camera.
ITEM
|
TTA111VRA
|
Video Bandwidth |
5MHz (-3dB)
|
Video Input |
100Ω Terminal block
|
Video Output |
75Ω BNC
|
Power Supply |
12V DC 1000mA Regulated (External)
|
Power Consumption |
180mA (Max)
|
Temperature |
Operation: 0 to 55℃, Storage: -20 to 85℃, Humidity: up to 95%
|
Dimensions |
43.2 × 74 × 45.2 (mm)
|
Weight (g) |
60 g
|
|
|
|
|
