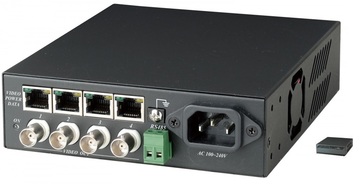

商品型號: TTA414VPDR
4路穩壓DC 12V電源、視頻、數據雙絞線接收器
商品規格:
- 運用雙絞線傳輸提供遠端,DC12V電源使用
- 搭配TTA111VPDC運用,可用一條網路線同時傳輸影像、電源、控制訊號
- 高功率電源輸出,最大可提供DC12V/100W
- 內建安全電源檢查ESD保護機制
- 內建突波吸收保護
商品特點:
Product ID: TTA414VPDR
4 Port Video, Power, Data Receiver With DC High Power Supply
Specifications:
- Identical to TTA111VPDR, but with 4 Port Video, Power, Data Receiver Hub
- Provide high power to 4 remote cameras DC12V/100W (Max.)
- Built in fan for low operating temperature.
Features:
- Rack mounted with TPN002 panel.
ITEM NO. |
TTA414VPDR |
Video, Input |
BNC, 1Vp-p, 75ohm |
Data Input |
RS485 Terminal Block |
Video, Data, Power Transmission |
RJ45 Termination |
LED Indication |
Power: blue , Power output: green, Video: yellow |
RJ45 Pin Define |
Video: pin 7.8, Data: pin 1, 2, Power: pin 3,4,5.6, |
Power |
Input: AC110-AC240V, Output: 54V |
Power Consumption |
8W ( Max.) |
Distance |
300 M |
Recommend Cable |
CAT 5 Cable 4 Pairs (24 AWG) |
Storage Temperature |
-30℃~70℃ |
Operation Temperature |
-10℃~45℃ |
Weight g |
960 g |
Dimension W x H x D mm |
142 ×182 ×42 |
Material |
Metal Black |
|
|
|
|
