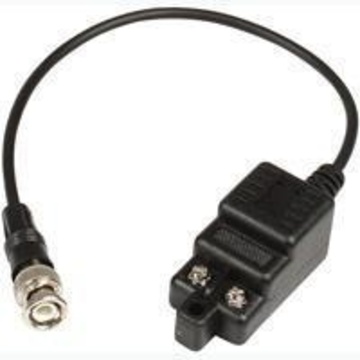

YSCT-TGP001H 無源雙絞線專用高感值接地隔離器 High Performance Twisted Pair Ground Loop Isolator

YSCT-TGP001H

商品型號: TGP001H

無源雙絞線專用高感值接地隔離器

商品規格:

BNC公座轉端子，兩端各20公分延長線
不需電源
內建高感值接地隔離器隔離地干擾
低訊號插入損失：20Hz- 6MHz，+0/-3dB
消除拖影，重影和上下滾動
防止其它CCTV 系統干擾

產品型號	TGP001H
插入損失	0.5dB
頻寬	20Hz -10MHz (0～3dB)
同軸線輸入輸出阻抗	75 Ohm
雙絞線輸入輸出阻抗	100 Ohm
接地隔離	>90dB @>50Hz
最小隔離電壓	DC 600V
絕緣阻抗	100M Ohm
尺寸 mm	78.3 x 28 x 27.5 + 240 mm x 2 線
重量 g	76

Product ID: TGP001H

High Performance Twisted Pair Ground Loop Isolator

Specifications:

The TGP001H Video Ground Loop Isolator is passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, Differences in ground potentials are typically caused by unbalanced power line loads.

Features:

BNC male to terminal block with 20cm mini coax cable.
Passive type, no power need.
Hi Performance to eliminate ground loop problem.
Low video loss , Bandwidth: 20hz -11Mhz ,+0/-3Db
Prevents video-signal distortion caused by video ground loops.
Eliminates picture tearing, cross talk and rolling.
Prevents power cables laid by others interfering with the CCTV system.

ITEM NO.	TGP001H
Insertion Loss	<0.5dB
Bandwidth	20Hz -11MHz, +0/-3dB
Input Resistance	75 ohm
Output Resistance	75 ohm
Ground loop rejection	>90dB @>50Hz
Isolation Voltage	600VDC (Min)
Insulation Resistance	100m Ohm
Transient Voltage Suppressors	12 Vrms
Dimensions (mm)	23x23x64 with 15cm cable
Material	ABS Black
