    首頁 > > YSCT-HDMI傳輸系列

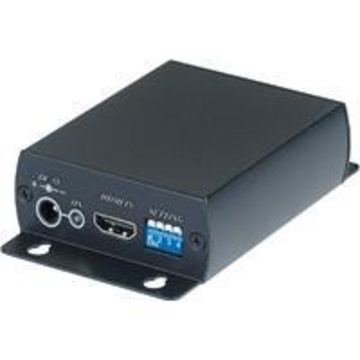

    HE01SE HDMI雙絞線接收器 Extends HDMI signal over one CAT5/5e/6 cable.
    看原圖
    		YSCT-HE01SE

    商品型號: HE01SE

    HDMI雙絞線接收器

    商品規格:
    • HE01SE為HE01ST搭配HE01SER之套件
    • HE01SER電源由HE01ST提供
    • 傳輸距離1080i時最遠可達60公尺，1080p最遠可達40公尺

    　
    產品型號  HE01ST HE01SER
    環境規格 工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
    頻寬 2.25 Gbps (HDMI 1.3)
    支援解析度 480i / p，720p，1080i / p @ 24/50/60 Hz
    傳輸距離 CAT.5e 60M @ 1080i，CAT.5e 40M @ 1080p
    輸入TMDS訊號 1.2 Vp-p
    輸入DDC訊號 5 Vp-p (TTL)
    輸入/輸出介面 HDMI Type A x 1 HDMI Type A x 1
    傳輸介面 RJ45 x 1 RJ45 x 1
    最大消耗電流 1200mA X
    電源變壓器 DC 5V 2A X
    尺寸 mm 67 x 120 x 27 57.5 × 24 × 20.2
    重量 g 180 20
    Product ID: HE01SE

    The HDMI CAT5 Extender is using only one cost effective CAT5E/6 cable to extend your HDTV display up to 70 meters at 1080i and 50 meters at 1080p. It is equipped with HDMI connectors and also supports DVI equipment with allowing used with a HDMI to DVI adapter. It provides an easy and flexible cabling solution for integrating home theater components.

    Features:
    • Extends HDMI signal over one CAT5/5e/6 cable.
    • HDMI 1.3 compliant.
    • Transmission range up to 50M at 1080i, 30M at 1080p resolution.
    • Work with passive receiver as economic type.
    • No external power requested at HE01SER receiver unit.
    • Extend the transmission distance up to 50M at 1080i / 720p.
    • Extend the transmission distance up to 30M at 1080p.
    • Package include one HE01ST transmitter, HE01SER receiver, one power adapter.
    •

    • ITEM NO.

      HE01ST

      HE01SER

      Video Bandwidth

      2.25 Gbps (HDMI 1.3)

      Resolution

      480i/p, 720p, 1080i/p @ 24/50/60Hz

      Link Cable Distance

      CAT5e 50M @1080i, CAT5e 30M @1080p

      Input TMDS Signal

      1.2 volts peak to peak

      Input DDC Signal

      5 Volts peak to peak

      HDMI Connector

      HDMI 19 pin type female connector

      Link Connector

      RJ-45 Shielded with 2 indication LEDS

      Power Supply

      5V DC 2AMP regulated (External)

      X

      Power Consumption

      1200mA (Max)

      X

      Temperature

      Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%

      Dimensions W x H x D mm

      120x67x27

      24×57.5×22.2 mm

      Weight

      180 g

      25 g
