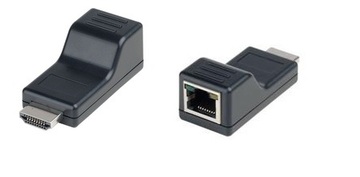

Extends HDMI signal over one CAT5/5e/6 cable.
HDMI 1.3 compliant.
Transmission range up to 50M at 1080i, 30M at 1080p resolution.
Work with passive receiver as economic type.
No external power requested at HE01SER receiver unit.
ITEM NO.
HE01ST
HE01SER
Video Bandwidth
2.25 Gbps (HDMI 1.3)
Resolution
480i/p, 720p, 1080i/p @ 24/50/60Hz
Link Cable Distance
CAT5e 50M @1080i, CAT5e 30M @1080p
Input TMDS Signal
1.2 volts peak to peak
Input DDC Signal
5 Volts peak to peak
HDMI Connector
HDMI 19 pin type female connector
Link Connector
RJ-45 Shielded with 2 indication LEDS
Power Supply
5V DC 2AMP regulated (External)
X
Power Consumption
1200mA (Max)
X
Temperature
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
