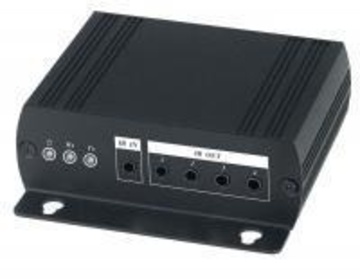

IE01 IR紅外線雙絞線延長器 Extend IR (infrared) control signal up to 1.2KM over one CAT5/5e/6 cable.

YSCT-IE01

商品型號: IE01

IR紅外線雙絞線延長器

商品規格:

使用CAT.5e網路線，傳輸距離最遠可延伸1.2公里
紅外線載波頻率涵蓋 30KHz ~ 60KHz
紅外線訊號可雙向傳輸
紅外線發射器可分配4組同時輸出
僅需單方供電即可動作

產品型號	IR 發射器 Emitter	IR 接收器 Receiver
IR 紅外線	3.5mm Phone Jack x 4	3.5mm Phone Jack x 1
IR 紅外線載波頻率	30KHz ~ 60KHz
最遠傳輸距離	1.2公里
IR紅外線操作距離	8 公尺	10 公尺
IR紅外線操作角度	± 30 度	± 55 度
最大消耗電流	100mA
電源變壓器	12V 0.5A
尺寸 mm	88 x 95 x 30
重量 g	185

This extender kit allows you to add IR remote control for up to four A/V devices over a single Cat5e/6 cable. Devices can be controlled from up to 1200 meters away. The external power only requested at one side, either at sender or receiver side. 2 sets of IR emitter/receiver cable and one power adapter are included. Suitable for home theatre, lecture theatres, AV rooms, conference rooms, shop window and merchandising displays.

Specifications:

Extend IR (infrared) control signal up to 1.2KM over one CAT5/5e/6 cable.
IR receiver frequency range: 30Khz to 60Khz.
Supports up to 4 outputs.
Support Bi-directional application.
External power adapter requested either at transmitter or receiver unit.
Package include IR CAT5 Extender Kit, 1 x power adapter, 2 x IR emitter cable, 2 x IR receiver cable.
Option model: IR-CT01 IR emitter cable

ITEM no.	IR Emitter		ir Receiver
IR	4 Port		1 Port
IR Carrier Frequency	30KHz ~ 60KHz
Extender Distance	1.2KM
IR Operating Distance	8 M	10 M
IR Operating Angle	± 30 deg	± 55 deg
Power Supply	Regulated 12V / 0.5A
Power Consumption	100mA (Max)
Dimensions	889530 (mm)
Shipping Weight	170 g
