.jpg "KM02 鍵盤、鼠標雙絞線延長器- USB接口 Keyboard Mouse CAT5 Extender")

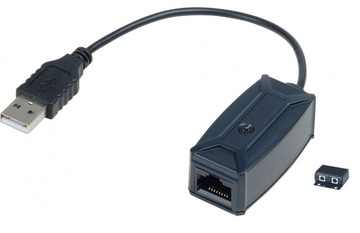

YSCT-KM02
CAT5 Keyboard Mouse Extender (鍵盤 & 滑鼠傳輸器) USB Interface at local unit Max 100M
商品型號: KM02
鍵盤、鼠標雙絞線延長器- USB接口
商品規格:
- 使用一條網路線延長USB鍵盤和滑鼠
- 電腦端KM03R：USB轉RJ45，鍵盤滑鼠端KM01T：RJ45轉PS/2
- 不需使用外加電源
- 傳輸距離最遠可達100公尺
產品型號 KM01T KM03R 頻寬 DC to 1MHz 連接線材 CAT 5 網路線 (24AWG) 最遠傳輸距離 100 公尺 RJ45 腳位定義 鍵盤：Pin 1，Pin 2，滑鼠：Pin 7，Pin 8 環境規格 工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95% 輸入/輸出介面 PS/2 x 2 USB Type A x 1 傳輸介面 RJ45 x 1 RJ45 x 1 尺寸 mm 67 x 70 x 27 53 x 25 x 20.7 + 180 mm 線 重量 g 110 28 Product ID: KM02
Keyboard Mouse CAT5 Extender
It is designed for USB keyboard and mouse to be connected to a PC up to 100 meters over CAT5 UTP able. Used in pairs and easy connection. Applications for classroom projector systems, , boardroom systems, collaborative PC systems and medical information systems.Specifications:
- Input: PS/2 keyboard/mouse
- Bandwidth: DC to 1Mhz
- Link Signals Mouse data, mouse clock, keyboard data, keyboard clock, VCC, ground
- Distance:106 meters (Max.)
- Cable: CAT5 cable
- RJ45 Pin Configuration
- Keyboard: pin 1, pin 2
- Mouse: pin 7, pin8
- Color Code Keyboard: Purple, Mouse: Green
- Temperature Operation: 0 to 55�J, Storage: -20 TO 85�J, Humidity: up to 95%
- Dimension: KMPT�G43*67*27 KMUR�G69x25x22
- Weight: KMPT�G100g, KMUR�G35g
Features:
- Send PS/2 Keyboard and mouse via one CAT5 UTP cable.
- Local unit (PC side): USB to RJ45, Remote Unit (Keyboard mouse side): RJ45 to PS/2.
- ��
- Passive, no power required.
- Transmission range up to 100 meters.
