商品規格:

• 搭配RB01最多可插4卡，共4組輸入
• 採用旋轉開關切換輸入頻道
• 具備一組VGA輸入及一組數位類比兩用聲音輸入
• 具備一組VGA輸出及一組數位類比兩用聲音輸出，供監看或串接用
• 可自動辨識數位或類比聲音輸入
• 聲音輸出可以數位、類比互轉 (數位聲音僅限PCM格式)
• 支援DDC、內建EDID及備份螢幕EDID功能
• 搭配RT01可支援多組網路線輸出分配

Specifications:

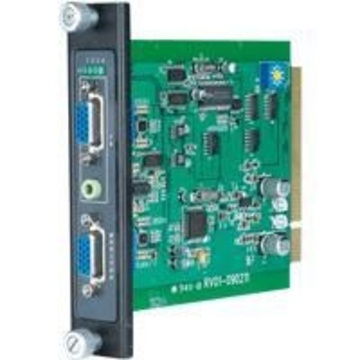

RV01, RT01 are 19” rack cards installed at local side for sending VGA & Stereo audio over cost effective CAT5 solution to remote side. These rack cards could install in RB01 19” standard rack mounting cabinet, up to 15 pieces. These senders with rack card type is a smart, fast and cost-effective, eliminates costly and bulky VGA and Audio cable and the most efficient way to move multimedia content from player to display. At monitor remote side, to use CAT5 VGA & Stereo audio CAT5 receiver for each monitor. It is professional and neat application for shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.

Features:

• 19” rack card with one VGA & stereo audio input and one loop output.
• Loop out could be for local monitoring or daisy chain application.
• Automatic identify digital or analog audio input.
• Audio output could be digital or analog conversion. (Digital audio only support PCM format).
• Support DDC and built in EDID, backup monitor EDID function.
• Maximum supports up to 4 channel VGA & stereo/digital audio input cards ( RV01x 4 pieces) in one RB01 rack mounting cabinet.
• Each input could allow multi outputs via RT01 (5 Channel CAT5 output rack card).
• Used to work with RT01 CAT5 5 channel transmitter rack card for multi input/output distribution over CAT5 cable.
