商品型號: TTA111VGA
有源VGA長距離視頻雙絞線延長器
商品規格:
- 適用遠距離傳輸,內含一個發射器及一個接收器
- 可調式增益放大
- 支援解析度達1600 x 1200 @ 85Hz
- 傳輸距離最遠可達300公尺

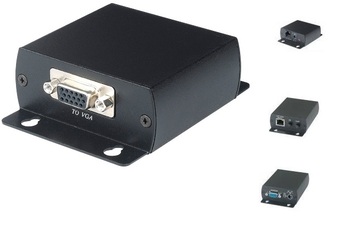

Product ID: TTA111VGA
Active Long Range VGA CAT5 Extender
Specifications:
The Active Long Rang Kit allows VGA video signals to be transmitted up to 300 meters via 4-paris CAT5 unshielded twisted pairs cable. Used in pairs, the VGA extender is used in home or commercial applications as a smart, fast and cost-effective, eliminates costly and bulky VGA cable, allowing VGA monitors to be connected extended distances from the PC via standard twisted pair cable. Ideal for classrooms video distribution, lecture halls, retail kiosks, video information displays, overhead projector systems, PC-training systems, and tradeshows PC demo systems.
Features:
- Active type, including transmitter and receiver.
- Built in contrast, brightness adjustment at Receiver.
- Supports up to 1600x1200 @85Hz.
- Built in ESD and power protection.
- LED indication for power and signal.
- Use 4 pairs UTP CAT5 cable instead of VGA cable for long rang transmission.
- Long range transmission up to 300 meters (Max.)
|
|
|
|
