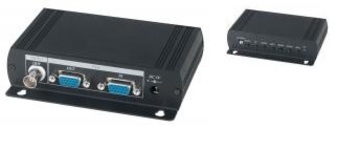

YSCT-VC01

商品型號: VC01

VGA轉複合視頻轉換器

商品規格:

VGA輸出連接到現有的電視或CRT顯示器
影像標準：NTSC、NTSC-EIAJ、PAL、PAL-M、PAL-N、SECAM
解析度支援：640x480（最高85 Hz）、800x600（最高85 Hz）和1024x768（最高75Hz）
雙輸出埠：複合影像（BNC端子）、VGA（DB15端子）

產品型號	VC01
輸入訊號	VGA (DB15)x 1
輸出訊號	複合影像 (BNC) x 1，VGA(DB15) x 1
最大消耗電流	500mA
電源變壓器	DC 5V 1A
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	125 x 95 x 30
重量 g	265

Product ID: VC01

VGA to Video Converter

Specifications:

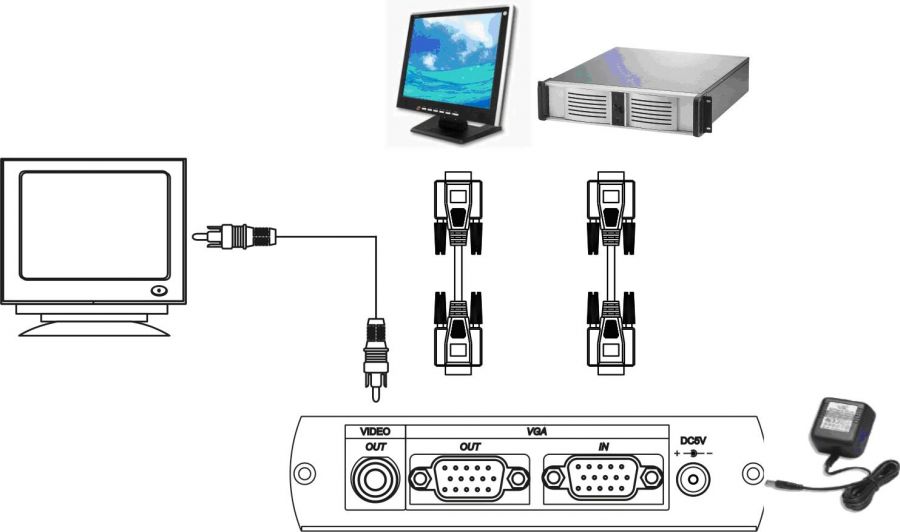

This VGA to BNC converter also features a VGA output port that allows for VGA Loop-Through. You can simultaneously view video on a VGA monitor while viewing the video on your CRT ,TV monitor. It convert your VGA signal to be viewed on any TV, projector, or any other viewing device that uses standard BNC (RCA) connector with this simple external device.

Features:

Use TV as PC monitors to view presentations, games, pictures and movies or browse the Web.
Connects your DVR with VGA output port to existing TV or CRT monitor.
Ideal for notebook computer users to easily connect and use a large-format monitor.
Video standards: NTSC/NTSC-EIAJ/PAL/PAL-M/PAL-N/SECAM.
Resolutions support: 640 x 480 (up to 85 Hz), 800 x 600 (up to 85 Hz) and 1024 x 768 (up to 75 Hz).
Input port: VGA (DB15).
Dual output ports: composite video (BNC connector), VGA (DB15).
Image controls: Horizontal a100nd vertical size, brightness, contrast, hue, saturation, sharpness and on screen display background.
Simple and quick to install; Windows and Mac compatible.
No driver or operating system requirements; compatible with Windows and Mac computers.

ITEM NO.	VC01
Input Signal	VGA x1
Output Signal	Composite Video (BNC) x 1, VGA X1 15 pin D female connector
Power Consumption	500mA
Power Supply	DC5V 2Amp Regulated Power Supply
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimension W x H x D mm	125 x 96 x 30mm
Weight g	280g
