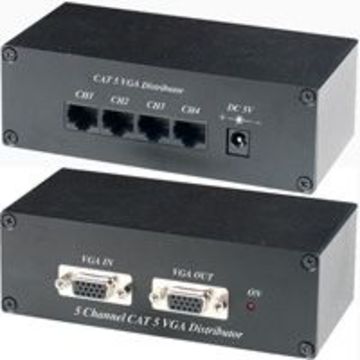

商品型號: VD105
VGA 1進5出視頻雙絞線延長分配器
商品規格:
- 一組近端輸出,另4組遠端經網路線延伸距離輸出
- 最遠傳輸距離可達300公尺
- 接收器可調對比及亮度
- VGA最高解析度可達1600 x 1200 @ 85 Hz
- 1套VE05含1個發射器VE05T及1個接收器VE01R
- 可另選購接收器:VE02DALS (解決長距離傳輸影像偏移問題)
產品型號 |
VE05T |
最高支援解析度 |
1600 x 1200 @ 85 Hz |
最遠傳輸距離 |
300公尺 |
影像頻寬 |
150MHz |
影像輸入訊號 |
RGB 類比 (75Ω,0.7Vp-p),同步信號,水平/垂直分離 (TTL) |
水平頻率 |
30 ~ 95KHz |
垂直頻率 |
50 ~ 180Hz |
影像輸入/輸出介面 |
DB15 x 2 |
傳輸介面 |
RJ45 x 4 |
最大消耗電流 |
500mA |
電源變壓器 |
DC 5V 1A |
環境規格 |
工作溫度:0 ~ 55℃,儲存溫度:-20 ~ 85℃,相對濕度:最高 95% |
尺寸 mm |
125 x 95 x 30 |
重量 g |
265 |
|
|
Product ID: VD105
CAT5 VGA 1 INPUT 5 OUTPUT LONG RANGE DISTRIBUTOR
Specifications:
VE05 is designed for long range VGA distribution over cost effective CAT5 UTP cable. One or multi video input to multi output, with one VGA LOOP output (VGA cable) for local side, others are RJ45 output (CAT5 UTP cable) at remote side. All of them built in amplifiers for long- range VGA signal transmission up to 300 meters when work with VE01-R VGA receiver at remote side. Ideal for classrooms video distribution, lecture halls, retail kiosks, video information displays, overhead projector systems, PC-training systems, and tradeshows PC demo systems.
Features:
- Each set including one piece VD105-T VGAT transmitter and one piece TTA111VGA-R receiver.
- Dual output: 1 VGA loop output for local, plus 4 x CAT5 RJ45 output for remote side.
- Each VGA display equipment request one TTA111VGA-R receiver at remote side (Order separately).
- Built in contrast, brightness adjustment at TTA111VGA-R Receiver.
- Supports up to 1600x1200 @85Hz.
- Use CAT5 cable instead of VGA cable.
- Long range transmission up to 300 meters (Max.).
- Power supply included.
|
|
|
