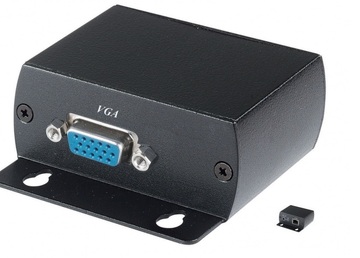

VE01H 有源高清VGA視頻雙絞線延長器 Active Hi Resolution VGA CAT5 Extender

YSCT-VE01H

商品型號: VE01H

有源高清VGA視頻雙絞線延長器

商品規格:

適用遠距離傳輸，內含一個發射器及一個接收器
可支援高解析達1920 x 1200，最遠傳輸距離可達70公尺
外接電源於發射端，接收端無須外接電源

產品型號	VE01HT	VE01HR
影像輸入/輸出介面	DB15 x 1 ( RGB 類比，0.7 Vp-p，75Ω)
影像頻寬	700 MHz，−3 dB
傳輸介面	RJ45 x 1
燈號指示	LED (藍燈)：已供電，RJ45 (綠燈)：影像訊號已連接
最大消耗電流	300mA	X
電源變壓器	DC 12V 500mA	X
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	67 x 87 x 27	67 x 87 x 27
重量 g	135	135

Product ID: VE01H

Active Hi Resolution VGA CAT5 Extender

Specifications:

VE01H is designed for high resolution 1920 x 1200 VGA signal over cost effective CAT5 cable to instead of VGA cable. No power requested at receiver unit for easy installation at monitor side.

The most efficient way to move multimedia content from player to display and could be used in shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.

Features:

Active type, including transmitter and receiver.
Supports high resolution up to 1920 x 1200 at 70 meters.
Use 4 pairs CAT5 UTP cable instead of VGA cable.
External power required at transmitter unit, no power requested at receiver unit.

ITEM	VE01HT	VE01HR
VGA Connector	15-pin D-sub x 1 ( RGB Analog．0.7 Vp-p 75Ω)
Video bandwidth	700 MHz, −3 dB
Data Link	RJ-45 x 1	RJ-45 x 1
DC Jack	Ø 2.0 mm x 1	x
Power Supply	DC 12V．500mA ( External )	x
Power Consumption	300 mA ( Max. )	x
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions	87mm x 67mm x 27mm
Weight	140g	130g
