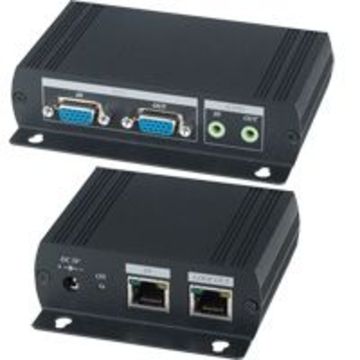

商品型號: VE02AL
1進3出VGA及立體音頻網線傳輸分配擴大器-具串接功能
商品規格:
- 1組近端VGA及立體聲輸出,可接近端螢幕或串接使用
- 2組遠端輸出,採用網路線傳輸同時傳輸影像與聲音,傳輸距離最遠可達300公尺
- VGA解析度最高可達1600 x 1200 @ 85 Hz
- 聲音採用數位傳輸,音質不失真
- 近端輸出支援DDC、DDC2、DDC 2B,另提供虛擬DDC及DDC備份功能
- 可另選購接收器:VE02DALS (解決長距離傳輸影像偏移問題)
產品型號 |
VE02ALT |
VE02ALR |
最高支援解析度 |
1600 x 1200 @ 85 Hz |
影像頻寬輸出 |
近端 750MHz / 遠端 350MHz (-3dB) |
影像輸入/輸出 |
RGB 類比,75Ω,0.7Vp-p |
同步輸入/輸出 |
水平/垂直分離,5V TTL |
水平掃描頻率 |
30 - 95 KHz |
垂直掃描頻率 |
50 - 180 Hz |
VGA連接頭 |
DB15 x 2 |
DB15 x 1 |
類比聲音輸出/輸入 |
10KΩ,3Vp-p (Max) |
類比聲音頻寬 |
20 - 20KHz (-3dB) |
類比聲音連接頭 |
3.5mm Phone Jack x 2 |
3.5mm Phone Jack x 1 |
傳輸介面 |
RJ45 x 2 |
RJ45 x 2 |
最遠傳輸距離 |
300公尺 |
最大消耗電流 |
700mA |
電源變壓器 |
DC 5V 2A |
尺寸 mm |
125 x 95 x 30 |
88 x 95 x 30 |
重量 g |
270 |
205 |
Product ID: VE02AL
1 in 3 Out VGA & Stereo Audio CAT5 Extender Distribution Amplifier - Chainable Function
Specifications:
VE02AL is designed for VGA +Stereo Audio signal over cost effective CAT5 cable to instead of VGA and Audio cable. VE02AL receiver built in chainable output to cascade the other receiver for working range over 300 meters. It is optimum video performance under long cable run and perfect for multiple monitor display.
This AV Extender is the smart, fast and cost-effective, eliminates costly and bulky VGA and Audio cable and the most efficient way to move multimedia content from player to display. Used in pairs, the VGA & Audio Extender is used in Shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.
Features:
- Extends VGA and stereo audio over one UTP CAT5 cable.
- Each set including one piece VE02ALT transmitter and one piece VE02ALR receiver.
- Support analog stereo audio.
- Digital transmission on analog stereo audio for sound undistorted.
- Supports up to 1600x1200 @85Hz.
- Long range transmission up to 300 meters (Max.)
- Dual output: 1 VGA loop output for local, plus 2 x CAT5 RJ45 output for remote side.
- Built in equalization, gain adjustment, chainable CAT5 output at remote unit.
- Remote unit could be daisy chained to another VE02ALR receiver to extended working range over 300 meters and multiple displays.
- Local unit VE02ALT local output: supports DDC、DDC2、DDC 2B,and provides virtual DDC, DDC backup function, to avoid wrong setting at high resolution/frequency and cause remote monitor unable display.
- Application for airports, train & bus stations, window display, trades shows, exhibitions.
|
|
|
|
