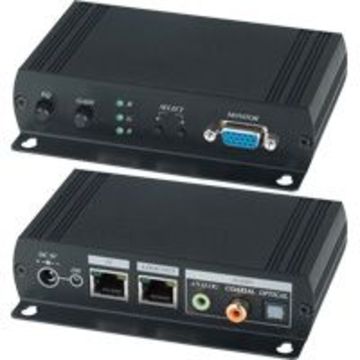

商品型號: VE02DALS
VGA長距離視音頻雙絞線接收器(內置RGB偏移調整)
商品規格:
- VE02DALS為配合VEXXA主動系列之VGA及聲音傳輸套件的接收端
- 具備1組VGA影像、類比立體聲、數位音源光纖及同軸輸出
- 1組RJ45 串接輸出,可供串接下一台VEXXA系列之接收端使用
- 採用網路線傳輸,同時傳輸影像與聲音,傳輸距離最遠可達到300公尺
- VGA解析度最高可達 1600 x 1200 @ 85Hz
- 具備RGB偏移調整,加強長距離傳輸之畫面品質
- 聲音採用數位傳輸,音質不失真
- 具備LPCM 44.1K / 48K / 96K 16 bit立體聲解碼能力
產品型號 |
VE02DALS |
最高解析度 |
1600 x 1200 @ 85 Hz |
影像頻寬 |
122MHz (-3dB) |
影像輸出 |
R.G.B 1 Vp-p 75Ω,水平、垂直同步 TTL |
同步輸出 |
水平/垂直分離,5V TTL |
水平掃描頻率 |
30 - 95 KHz |
垂直掃描頻率 |
50 - 180 Hz |
VGA連接頭 |
DB15 x 1 |
類比聲音輸出 |
3.5mm Phone Jack x 1 (10KΩ),3 Vp-p (Max) |
數位聲音輸出 |
Coaxial RCA x 1 (75Ω),Optical x 1 |
聲音頻寬 |
20 - 20KHz (-3dB) |
影像偏移調整 |
0 – 62ns ( 2ns Step ) |
傳輸介面 |
RJ45 x 1 |
最遠傳輸距離 |
300公尺 |
最大消耗電流 |
1A |
電源變壓器 |
DC 5V 2A |
尺寸 mm |
125 x 95 x 30 |
重量 g |
285 |
|
|
Product ID: VE02DALS
VGA & Stereo/Digital Audio CAT5 Receiver, Bulitin Skew Corrector.
Work with TTA111VGA-T, VD102T, VD105T, VE02ALT, VE05ALT CAT5 VGA transmitter as a high quality receiver.
Specifications:
VE02DALS is a CAT5 receiver and special designed for long range transmission over cost effective CAT5 cable to instead of VGA and Audio cable and workable for all our CAT5 VGA transmitters.
It’s built in RGB skew adjustment for the optimum video performance under long cable run.
This AV Extender is the smart, fast and cost-effective, eliminates costly and bulky VGA and Audio cable and the most efficient way to move multimedia content from player to display. Used in pairs, the VGA & Audio Extender is used in Shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.
Features:
- Work with VE01T, VE02T, VE05T, VE02DAT, VE02ALT, VE05ALT CAT5 VGA transmitter as a high quality receiver.
- Built in RGB skew adjustment for the optimum video performance under long cable run.
- It could be daisy chained for another VE02DALS to extended working range over 300 meters and multiple displays.
- Built in analog audio, digital audio output ( coaxial, optical)
- Built in equalization, gain adjustment.
- Supports up to 1600x1200 @85Hz.
- Digital transmission on analog stereo audio for sound undistorted.
- support LPCM 44.1K、48K、96K / 16bit stereo decode function, digital and analog could simultaneously output. Dolby Digital (AC3) and DTS digital output supported.
|
|
|
