Product ID: VE10DAL

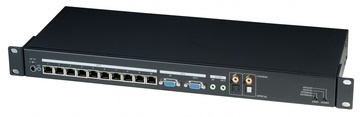

1 in 10 Out VGA & Stereo/Digital Audio CAT5 Extender Distribution Amplifier In 1U Rack Mounting Panel
Specifications:
VE010DAL is designed for VGA +Stereo Audio/Digital Audio signal over cost effective CAT5 cable to instead of VGA and Audio cable. VE02AL/VE02DALS receiver built in chainable output/skew corrector to cascade the other receiver for working range over 300 meters. It is optimum video performance under long cable run and perfect for multiple monitor display.
This AV Extender is the smart, fast and cost-effective, eliminates costly and bulky VGA and Audio cable and the most efficient way to move multimedia content from player to display. Used in pairs, the VGA & Audio Extender is used in Shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.
Features:
- Extends and distributes VGA and stereo/digital audio over one UTP CAT5 cable.
- Supports up to 1600x1200 @85Hz.
- Long range transmission up to 300 meters (Max.)
- Dual output: 1 VGA loop output for local, plus 10 x CAT5 RJ45 output for remote side.
- Built in one loop out allows cascading connection multi units for larger display system.
- Built in EDID and auto back up Monitor EDID.
- Audio by digital encoding process for sound undistorted.
- Digital audio support coax and optical input, auto selection.
- CAT5 receiver option model: VE02ALR, VE02DALS.
