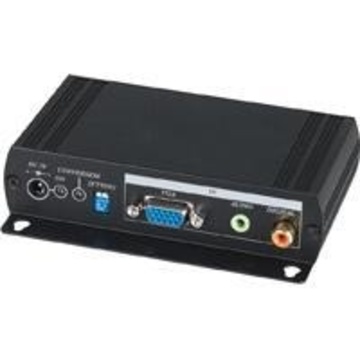

VH01 VGA轉HDMI轉換器 VGA to HDMI Converter with Local loop VGA output

YSCT-VH01

商品型號: VH01

VGA轉HDMI轉換器

商品規格:

支援 HDMI & DVI (需另購轉接頭) 輸出模式
支援最高解析度可達1920 x 1080
支援類比聲音及數位聲音輸入
具備VGA、類比立體聲、數位同軸之近端輸出

支援解析度/頻率	50Hz	56Hz	60Hz	70Hz	72Hz	75Hz	85Hz
640 x 480			●		●	●	●
800 x 600		●	●		●	●	●
1024 x 768			●	●		●	●
1280 x 960			●
1280 x 1024			●			●	●
1360 x 768			●
1440 x 900			●
1600 x 1200			●
1920 x 1080			●

產品型號	VH01
輸入信號	VGA x 1 (最大 1920 x 1080)，立體聲音/數位聲音
影像輸入連接頭	DB15 x 1
類比聲音輸入/輸出	3.5mm Phone Jack x 2 (10KΩ)
數位聲音輸入/輸出	SPDIF RCA x 2 (75Ω)
影像輸出信號	HDMI A Type x 1
最大消耗電流	800mA
電源變壓器	DC 5V 2A
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	125 x 95 x 30
重量　 g	270

Product ID: VH01

VGA to HDMI Converter with Local loop VGA output

Specifications:

VH01 VGA to HDMI Format converter allows you to convert VGA and analog audio or SPDIF digital audio into one HDMI cable. Plug your laptop or PC in and see it on your HDTV with an HDMI input. This product converts the VGA signal to HDMI at the resolution of the VGA video source. If the VGA source is set to 480i, 720p or 1080i, 1080p. Then it will convert to HDMI at the same corresponding resolution.

Features:

Convert VGA & stereo/Digital (SPDIF) audio to HDMI display.
Built in local VGA loop output with stereo/Digital (SPDIF) audio.
Support HDMI & DVI output mode. (Package do not include HDMI to DVI cable/adapter).
Encodes analog stereo audio or digital audio onto the video signal for HDMI video and audio.
Supports PC resolution up to 1920 x 1080.

Resolution /Frequency	50Hz	56Hz	60Hz	70Hz	72Hz	75Hz	85Hz
640 x 480			●		●	●	●
800 x 600		●	●		●	●	●
1024 x 768			●	●		●	●
1280 x 960			●
1280 x 1024			●			●	●
1360 x 768			●
1440 x 900			●
1600 x 1200			●
1920 x 1080			●

ITEM NO.	VH01
Input Signal	VGA x1 (1920x1080 Max) , stereo audio /digital audio
Video Input Connector	VGA 15 pin HD
Analog Audio Input	3.5mm Stereo Phone jack, 10KΩ
Digital Audio Input	SPDIF RCA, 75Ω x 1
Video Output Signal	HDMI A type connector x 1
Power Consumption	800mA
Power Supply	DC5V 2Amp Regulated Power Supply
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimension W x H x D mm	125mm x 96mm x30mm
Weight g	280g
