商品規格:

• 使用一條網路線可同時延伸傳輸VGA＋鍵盤＋滑鼠＋紅外線＋USB＋立體聲
• 支援USB 2.0，USB 1.0 & USB 1.1
• RS232支援全雙工傳輸
• 發射器內建一組VGA近端輸出
• 接收器內建4埠USB HUB，可延長USB 2.0裝置例如：讀卡機、硬碟、鍵盤、滑鼠、大量儲存裝置等…
• 最高支援1920x1080解析度
• 傳輸距離最遠可達140公尺
• 隨插即用，無需設定或調整
• 選配品號：SR01訊號中繼器可延長傳輸距離最遠達240公尺

Specifications:

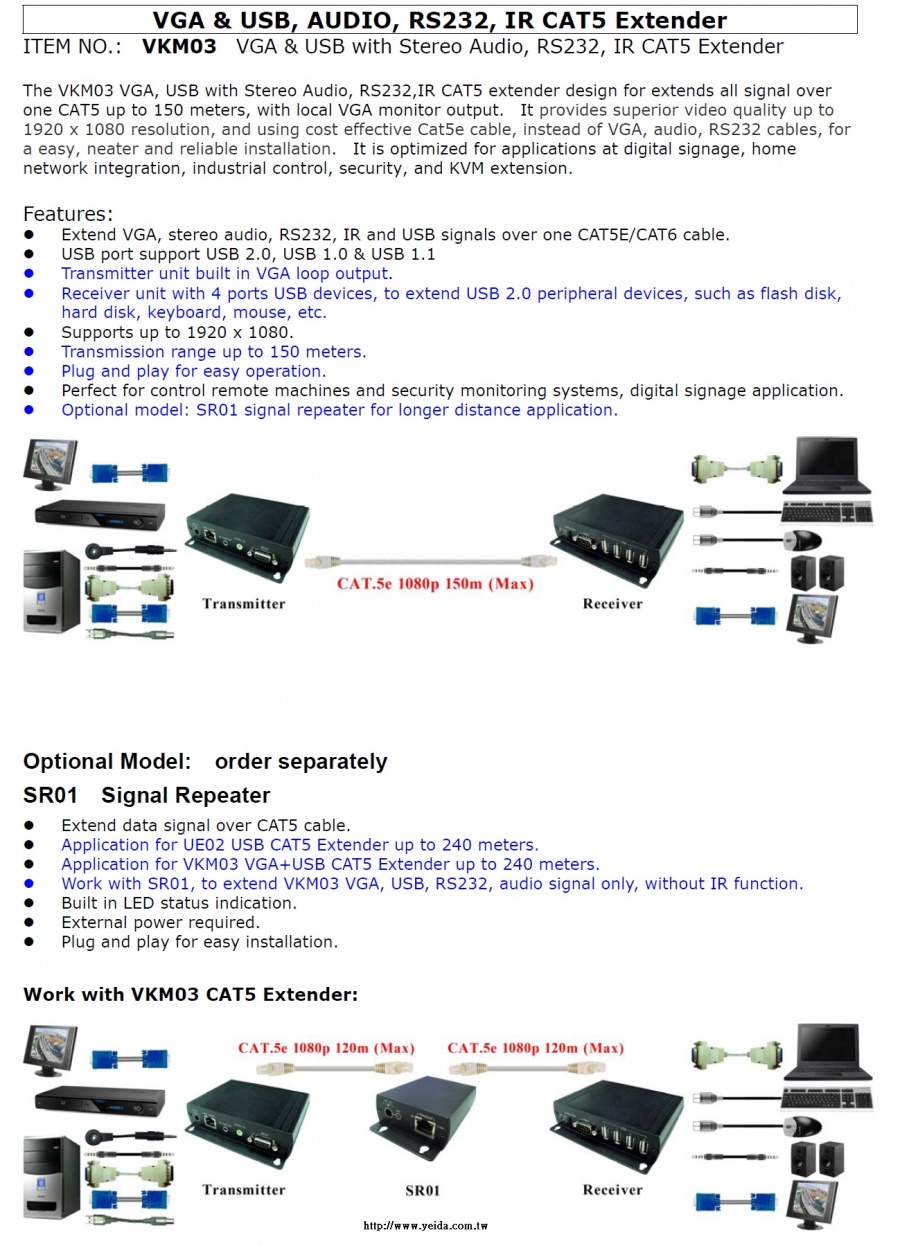

The VKM03 VGA, USB with Stereo Audio, RS232, and IR CAT5 extender design for extends all signals over one CAT5 up to 140 meters, with local VGA monitor output. It provides superior video quality up to 1920 x 1080 resolutions, and using cost effective Cat5e cable, instead of VGA, audio, RS232 cables, for an easy, neater and reliable installation. It is optimized for applications at digital signage, home network integration, and industrial control, security, and KVM extension.

Features:

Extend VGA, stereo audio, RS232, IR and USB signals over one CAT5E/CAT6 cable.

USB port support USB 2.0, USB 1.0 & USB 1.1

Transmitter unit built in VGA loop output.

Receiver unit with 4 ports USB devices, to extend USB 2.0 peripheral devices, such as flash disk, hard disk, keyboard, mouse, etc.

Supports up to 1920 x 1080.

Transmission range up to 140 meters.

Plug and play for easy operation.

Perfect for control remote machines and security monitoring systems, digital signage application.
