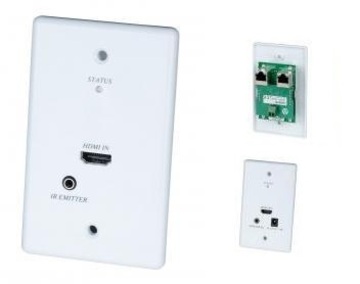

HW01 嵌入式HDMI & IR紅外線雙絞線延長器 Wall Plate HDMI & IR CAT5 Extender

YSCT-HW01

商品型號: HW01

嵌入式HDMI & IR紅外線雙絞線延長器

商品規格:

使用兩條網路線傳送HDMI和IR訊號，1080i距離最遠可達60公尺、1080p最遠可達40公尺
支援 HDMI 1.3，相容 HDCP
支援DDC、EDID與熱插拔偵測
距離30公尺以內不需外接電源
外型尺寸：115 x 71 mm

產品型號	HW01T	HW01R
最大頻寬	2.25 Gbps
支援解析度	480i / 576i / 480p / 576p / 720p / 1080i / 1080p
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
傳輸距離	CAT.5e 60公尺 @ 1080i，CAT.5e 40公尺 @ 1080p
輸入/輸出介面	HDMI Type A x 1	HDMI Type A x 1
傳輸介面	RJ45 x 2	RJ45 x 2
最大消耗電流	X	DC 5V 500mA
電源變壓器	X	DC 5V 1A
IR 紅外線頻率	38KHz	38KHz
3.5 mm接頭	IR Emitter x 1	IR Receiver x 1
尺寸　　mm	70.3 x 33 x 115	70.3 x 33 x 115
重量　　　g	68	70

Product ID: HW01

Wall Plate HDMI & IR CAT5 Extender

Specifications:

HW01 Wall Plate HDMI with IR repeater CAT5 extender is designed to use two low cost CAT5E cable to extend HDTV sources from DVD players, Blu-ray Disc player PS3. With extra IR repeater function for easy and friendly control HDMI sources from the remote site.

Features:

Extends HDMI and IR signal over two CAT5/5e/6 cables.
Transmission range up to 60 meters.
Support high resolution up to 1080p.
Built in auto EQ function, no need to do any adjustment for different range.
Fully HDCP compliant.
HDMI 1.3a compatible, HDCP 1.1, support DDC, EDID, CEC, Hot Plug Detect
Built in IR repeater function, could be control the source devices from remote side.
Receiver unit power could be sending from PCB inside 5V terminal or external 5V DC Jack.
Package includes: transmitter and receiver unit, one external power adapter, IR emitter cable and IR receiver cable. ( 1.8 meters（6 ft）)

ITEM NO.	HW01T	HW01R
Resolution	480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Data Rate	Max 2.25Gbps
Link Cable Distance	CAT5e 60M@1080i , CAT5e 50M @1080p
HDMI Connector	HDMI A Type x 1 (Input)	HDMI A Type x 1 (Output)
3.5 mm Connector	IR emitter	IR receiver
Link Connector	RJ-45 Shielded x 2
IR Carrier Frequency	38Khz
Power Consumption	X	5V 500mA (Max)
Power Supply	DC5V 1Amp
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
DIMENSIONS W x H x D mm	70W x 32H x 115D.
Weight g	110 g x 2
