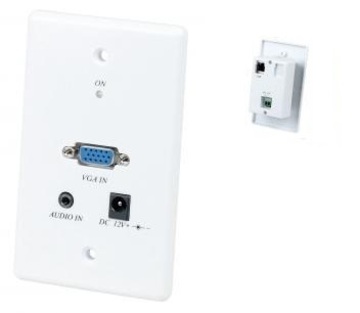

VW01HA 有源嵌入式高清VGA視頻&立體音頻雙絞線延長器 Wall Plate Hi Resolution VGA CAT5 Extender With Stereo Audio

YSCT-VW01HA

商品型號: VW01HA

有源嵌入式高清VGA視頻&立體音頻雙絞線延長器

商品規格:

最遠傳輸距離可達70公尺
電源由發射端供電，接收端不需外接電源
採用網路線傳輸，同時傳輸VGA影像與立體聲
最高支援解析度：1920 x 1200
外形尺寸115 x 71 mm

產品型號	VW01HAT	VW01HAR
影像輸入/輸出介面	DB15 x 1 ( RGB 類比，0.7 Vp-p，75Ω)
類比聲音輸入/輸出	3.5mm Phone Jack x 1 (10KΩ，2 Vp-p)
影像頻寬	700 MHz，−3 dB，2 Vp-p
聲音頻寬	20 ~ 20K Hz −3dB
傳輸介面	RJ45 x 1
燈號指示	LED (藍燈)：已供電
最大消耗電流	400 mA	X
電源變壓器	DC 12V 500mA	X
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
尺寸 mm	70.3 x 31.6 x 115	70.3 x 31.6 x 115
重量 g	78	75

Product ID: VW01HA

Wall Plate Hi Resolution VGA CAT5 Extender With Stereo Audio

Specifications:

VW01HA is designed for high resolution 1920x 1200 VGA signal with audio over cost effective CAT5 cable to instead of VGA and Audio cable. No power requested at receiver unit for easy installation at monitor side.

Wall Plate type or metal box type are available for different combination and installation Built in stereo audio as AV extender, the most efficient way to move multimedia content from player to display and could be used in shopping malls, public address systems, airports, train & bus station, boardrooms, trade shows, computer based training application.

Features:

Active type, including VW01HAT transmitter and VW01HAR receiver.
Built in stereo audio.
Audio by digital encoding process for sound undistorted.
Supports high resolution up to 1920 x 1200 at 70 meters.
Use 4 pairs CAT5 UTP cable instead of VGA cable.
External power required at transmitter unit, no power requested at receiver unit.
Wall Plate outer dimension: 70 x 115.
Compatible with metal box type VE01HA.

ITEM	VW01HAT	VW01HAR
VGA Connector	15-pin D-sub x 1 ( RGB Analog．0.7 Vp-p 75Ω)
Audio Connector	Stereo Phone Jack 3.5mm x 1 ( 2Vp-p Max．10KΩ)
Video bandwidth	700 MHz, −3 dB, 2 V p-p bandwidth
Audio bandwidth	20 – 20K Hz -3db
Data Link	RJ-45 x 1
DC Jack	Ø 2.0 mm x 1	X
Power Supply	DC 12V．500mA ( External )	X
Power Consumption	400 mA ( max )
Temperature	Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%
Dimensions	70x31.6x115 (mm)	70x31.6x115 (mm)
Shipping Weight	75 g	70 g
