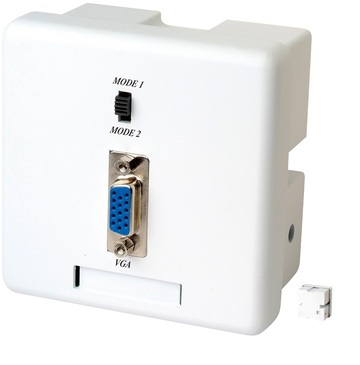

VW02 無源嵌入式VGA視頻雙絞線延長器 Wall Plate VGA CAT5 Extender

YSCT-VW02

商品型號: VW02

無源嵌入式VGA視頻雙絞線延長器

商品規格:

無須電源
支援1280 x 1024解析度
使用網路線傳輸距離最遠可達100公尺
適用於桌上型電腦、筆記型電腦、投影機、液晶螢幕等VGA訊號傳輸
適用於學校、會議廳、展覽館等音影像播放系統傳輸
外形尺寸86 x 86 mm

解析度	傳輸距離
800x600 (30MHz)	100 公尺
1024x768 (60MHz)	75 公尺
1280x1024 (100MHz)	60 公尺

產品型號	VW02T	VW02R
輸入信號	影像：1 Vp-p‧水平&垂直同步：TTL 標準，300KHz 最大頻寬
插入損耗	每對頻率範圍小於 3dB
影像信號回波損耗	-15dB Max From DC to 60MHz
最高支援解析度	1280 x 1024
連接線材	CAT 5 網路線 (24AWG)
最遠傳輸距離	100 公尺
RGB 輸入/輸出阻抗	75 Ohm (DB15)，100 Ohm (RJ45)
環境規格	工作溫度：0～55℃，儲存溫度：-20～85℃，相對濕度：最高95%
輸入/輸出介面	DB15 x 1
傳輸介面	RJ45 x 1
開關設置	滑動開關 x 1	指撥開關 x 1
尺寸 mm	86 x 55 x 86	86 x 55 x 86
重量 g	122	120

Product ID: VW02

Wall Plate VGA CAT5 Extender

Specifications:

The VGA Extender allows VGA video signals to be transmitted up to 135 meters via 4-paris CAT5 STP or UTP cable. Used in pairs, the VGA Extender is used in home or commercial applications as a smart, fast and cost-effective, eliminates costly and bulky VGA cable, allowing VGA monitors to be connected extended distances from the PC via standard twisted pair cable. Ideal for classrooms video distribution, lecture halls, retail kiosks, video information displays, overhead projector systems, PC-training systems, and tradeshows PC demo systems. Wall mountable type could be using CAT5 structuring cable for easy installation to simplifies and beautifies any audiovisual environment.

Features:

Used in pairs via one CAT5 UTP cable to send VGA up to 135 meters.
VGA connector to shielding RJ45 female.
Wall plate outer dimension: 86 x 86 mm
Passive device, no power required, not support VGA DDC protocol.
Supports up to 1280x1024 pixels.
Up to 135 meters via standard 4 pairs CAT5 STP or UTP cable instead of VGA cable.
Transmitter built in virtual DDC to avoid improperly setting at resolution and frequency.
Transmitter built in sync mode selection for signal stability.
Receiver built in sync filter level adjustment for signal stability.
Perfect for classrooms, lecture halls, tradeshows, video information displays…etc.

Max. Distance via CAT 5 Cable
640x480 pixels (15MHz)	135M
800x600 pixels (30MHz)	105M
1024x768 pixels (60MHz)	75M
1280x1024 pixels (100MHz)	60M

ITEM NO.	VW02T	VW02R
Devices	DVR, PCs, Laptops	VGA Monitors, Projectors
Input Signals	Video: 1 Vp-p
	Horizontal & Vertical SYNC : TTL standard. 300kHz max. bandwidth
Insertion Loss	Less than 3dB per pair over the frequency range
Video Signal Return Loss	-15dB max from DC to 60Mhz
RJ45 Pin Configuration: EIA 568B Wiring standard	R video (Red): Pin 1 (+), Pin 2 (-) Balanced G video (Green): Pin 4 (+), Pin 5 (-) Balanced B video (Blue): Pin 7 (+), Pin 8 (-) Balanced Horizontal Sync: Pin 3, Vertical Sync: Pin 6
Impedance	Input : RGB 75 ohms (DB15 HD) Unbalanced	Input : RGB 100 ohms (RJ45 shielded) Balanced
	Output : RGB 100 ohms (RJ45 shielded) Balanced	Output : RGB 75 ohms (DB15 HD) Unbalanced
	Horizontal and vertical sync : TTL standard
Setting Switch	2 Stage Slide Switch	5 Stage Dip Switch
Transmission Distance	60 -135 meters depend on image resolution
Link Cable	CAT5 / CAT5e / CAT6 / STP or UTP Cable
Temperature	Operation: 0 to 55 C, Storage: -20 TO 85 c, Humidity: up to 95%
Dimensions W x H x D mm	110x77x26
