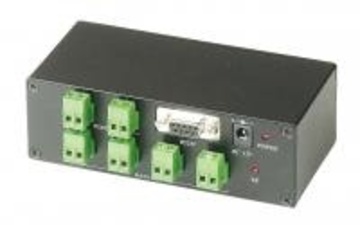

RS004 1進4出RS485控制信號分配器 RS485 Distributor 1 input 4 Output

YSCT-RS004

商品型號: RS004

1進4出RS485控制信號分配器

商品規格:

輸入信號：1個RS232，2個RS485 (三組輸入可為“待命”狀態，每次使用只能用一組輸入控制)
輸出信號：4個RS485，每個通道連接範圍可達1200公尺
內建避雷保護
獨立輸入/輸出回路
可再串聯 RS004/ RS008/ RS016
含變壓器 x 1

商品特點:

RS001：RS232轉RS485控制信號轉換器
PCR011N：PTZ控制信號接收器
　

產品型號	RS004
輸入介面	DB9 x 1，2芯插拔端子x 2
輸出介面	2芯插拔端子x 4
傳輸信號	RS485
最大消耗電流	350mA
電源變壓器	DC12V 500 mA
工作溫度	0～45°C
尺寸 mm	133 x 76 x 44
重量 g	425
材質	鐵

Product ID: RS004

RS485 Distributor 1 input 4 Output

Specifications:

RS004 is serial data distributor and similar to a repeaters, gives serial data back on 4 outputs at the same time, allowing perfect configurations. The transmission in RS485 and takes places at the same time on all 4 outputs. The receiving mode of the input can be selected in RS485 or RS232.

Features:

Input option: 1 x RS232, 2 x RS485 (3 input can be “stand by” status at the same time, but only one controller will be activated at once)
Output: 4xRS485, each channel connection range up to 1200 meters by twisted pair cable.
Built in surge protection at each channel.
Each input/output is isolated.
Ability to cascade connection to other units RS004/RS008/RS016.
The application gives serial data back on 4 outputs at the same time, to provide perfect configurations.
Power supply included.

ITEM NO.	RS004
DATA Input	RS232 / RS485 (Terminal Block)
Data Output Port	4 Port (Terminal Block)
Data Output Signal	RS485
Power Supply	12 VDC
Power Consumption	350mA
Operating Temperature	0 ～45°C
Dimension W x H x D mm	133X76X44
Weight g	425
Material	Metal Black
