商品規格:

• 輸入信號：1個RS232，2個RS485 (三組輸入可為“待命”狀態，每次使用只能用一組輸入控制)
• 輸出信號：8個RS485，每個通道連接範圍可達1200公尺
• 內建避雷保護
• 獨立輸入/輸出回路
• 可再串聯 RS004/ RS008/ RS016
• 含變壓器 x 1

商品特點:

Specifications:

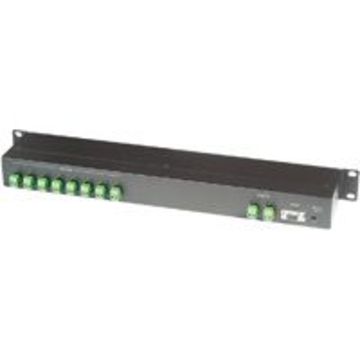

RS008 is serial data distributor and similar to a repeaters, gives serial data back on 8outputs at the same time, allowing perfect configurations. The transmission in RS485 and takes places at the same time on all 8 outputs. The receiving mode of the input can be selected in RS485 or RS232.

Features:

• Input option: 1 x RS232, 2 x RS485 (3 input can be “stand by” status at the same time, but only one controller will be activated at once)
• Output: 8xRS485, each channel connection range up to 1200 meters by twisted pair cable.
• Built in surge protection at each channel.
• Each input/output is isolated.
• Ability to cascade connection to other units RS004/RS008/RS016.
• The application gives serial data back on 4 outputs at the same time, to provide perfect configurations.
• Power supply included.
