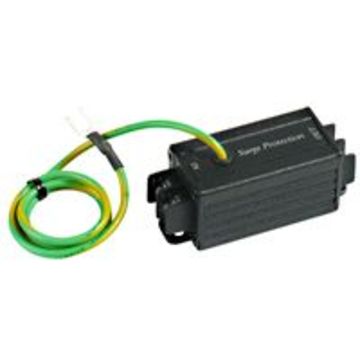

YSCT-SP001P

商品型號: SP001P

電源防雷器

商品規格:

設備端：2芯端子座，線材端：2芯端子座＋接地線
兩段式保護，AC/DC 130V
最大輸入電壓：AC40V(最大)，DC 56V(最大)
適用攝影機之電流源最大2A

產品規格	SP001P
響應時間	1 ns
最大放電壓	4 KV
耐擊壽命	300 surges of 100A
絕緣阻抗	10,000 MΩ
瞬間接地阻抗	Approx，0Ω
頻寬	0~1 GHz
瞬間擷取電壓	DC / AC 130V，65 Vrms at10 A
訊號插入損失	Less than 0，2 dB
反匱損失 (75Ω)	16dB
最大電源輸入	AC 40V，DC 56V
轉接頭規格	端子
尺寸 mm	82.4 x 25.4 x 25.4
重量 g	65

Product ID: SP001P

Power Surge Protector

Specifications:

Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.

Features:

Performs a different function than grounding requirements.
Protects equipment from high voltage surges from nearby lightning strikes.
Two stage protection: 130V, AC/DC 12V
Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc.

ITEM NO.	SP001P
Surge Protection Attack Time	1 ns
Maximum Surge Voltage	4 KV
Surge Life	300 surges of 100Amps
Normal Resistance Across Coax	10,000 MΩ
Surge Resistance	Approx. 0Ω
BAND PASS	0~1 GHZ
Power Passing Capability	130V DC / AC, 65 Vrms at10 Amps
Insertion Loss	Less than 0.2 dB
Return Loss (75 ohms)	16dB
Power IN Put	AC 40V(MAX), DC56V(MAX)
Connectors	Terminal
Dimensions W x H x D mm	65x25x25
WEIGHT g	65
