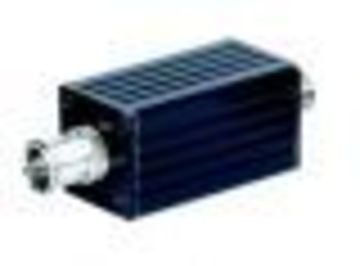

商品型號: SP002
單路視頻防浪湧器
商品特點:
產品規格 |
SP002 |
響應時間 |
1 ns |
最大放電壓 |
4 KV |
耐擊壽命 |
300 surges of 100A |
絕緣阻抗 |
10,000 MΩ |
瞬間接地阻抗 |
Approx,0Ω |
頻寬 |
0~1 GHz |
瞬間擷取電壓 |
AC / DC 130V,65 Vrms at10 A |
訊號插入損失 |
Less than 0,2 dB |
反匱損失 (75Ω) |
16dB |
轉接頭規格 |
F |
尺寸 mm |
73x25.4x25.4 |
重量 g |
65 |
Product ID: SP002
Video Surge Protector - F Connector
Specifications:
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
- Performs a different function than grounding requirements.
- Protects equipment from high voltage surges from nearby lightning strikes.
- Two stage protection: under 1ns-90V, over 10ns-12V.
- Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR...etc.
- Protects UTP Twisted Pair transmission products.
|
|
|
|
