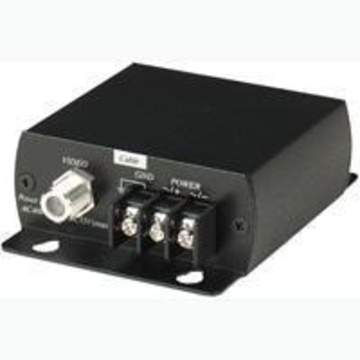

商品型號: SP002VP
視頻、電源雙功防雷器
商品規格:
- 設備端:2芯端子座+F端子母座,線材端:3 芯端子座+F端子母座
- 兩段式保護:AC/DC 130V(電源),AC/DC 12V (影像)
- 最大輸入電壓:AC40V(最大),DC 56V(最大)
- 適用攝影機之電流源最大2A
|
Product ID: SP002VP
Video & Power Surge Protection - F connector
Specifications:
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
- Performs a different function than grounding requirements.
- Protects equipment from high voltage surges from nearby lightning strikes.
- Two stage protection: under 1ns-90V, over 10ns-12V.
- Wide range of applications: CCTV/CATV system, Antenna of Television, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR...etc.
- 3 pin terminal + F female to 4 pin terminal + F female.
- Two stage protection, AC/DC 130V, AC/DC12V
- Max power input AC 40V(MAX), DC 56V(MAX).
- Max current up to 2Amp.
|
|
|
