品名 |
SP001 |
SP002 |
SP003 |
SP004 |
SP005 |
SP006 |
保護動作時間 |
< 100ns(90V), > 100ns(12V) |
最大放電電流 |
5000A |
雷擊壽命 |
300次/100Amps(min) |
絕緣阻抗 |
10,000 M ohms |
瞬間接地阻抗 |
Approx. 0 ohms |
瞬間擷取電壓 |
DC90V, AC90Vp-p, 65 Vrms ( 10Amps ) |
輸入訊號損失 |
小於 0.2dB |
阻抗 |
75 ohms |
頻寬 |
0~10MHz |
接頭規格 |
BNC 公/BNC 母 |
F 公/F 母 |
BNC 公/RJ45 母 |
端子座/端子座 |
BNC母+端子座/BNC母+端子座 |
RJ45母/RJ45母 |
尺寸 (mm) |
25x25x75 |
25x25x70 |
25x25x45 |
25x25x67 |
87x67x27 |
87x67x27 |
淨重 (g) |
74 |
70 |
80 |
74 |
136 |
134 |
材質 |
Metal Black |

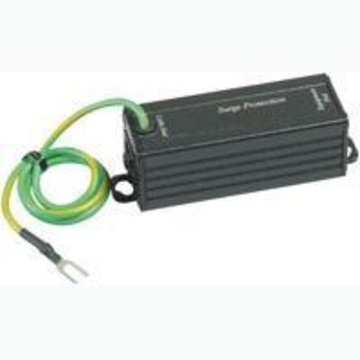

商品型號: SP003
雙絞線傳輸用視頻防雷器
商品規格:
- 設備端:RJ45端子,線材端:RJ45端子+接地線
- 內建兩對絞線避雷保護(第2對和第4對)
- 專為搭配雙絞線傳輸器設計
產品規格 |
SP003 |
響應時間 |
1 ns |
最大放電壓 |
4 KV |
耐擊壽命 |
300 surges of 100A |
絕緣阻抗 |
10,000 MΩ |
瞬間接地阻抗 |
Approx,0Ω |
頻寬 |
0~1 GHz |
瞬間擷取電壓 |
AC / DC 130V,65 Vrms at10 A |
訊號插入損失 |
Less than 0,2 dB |
反匱損失 (75Ω) |
16dB |
轉接頭規格 |
RJ45 |
尺寸 mm |
82.7x25.4x25.4 |
重量 g |
75 |
|
|
Product ID: SP003
UTP Video Surge Protector RJ45 Connector
Specifications:
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
- Performs a different function than grounding requirements.
- Protects equipment from high voltage surges from nearby lightning strikes.
- Two stage protection: 130V, AC/DC 12V
- RJ45 Jack to RJ45 Jack
- Two pairs protection (pair 2 & pair 4)
- Protects UTP twisted pair transmission products
ITEM NO. |
SP003 |
Surge Protection Attack Time |
1 ns |
Maximum Surge Voltage |
4 KV |
Surge Life |
300 surges of 100Amps |
Normal Resistance Across Coax |
10,000 MΩ |
Surge Resistance |
Approx. 0Ω |
BAND PASS |
0~1 GHZ |
Power Passing Capability |
130V AC / DC, 65 Vrms at10 Amps |
Insertion Loss |
Less than 0.2 dB |
Return Loss (75 ohms) |
16dB |
Connectors |
RJ45 |
Dimensions W x H x D mm |
85x25x25 |
WEIGHT g |
90 |
|
|
|
|
