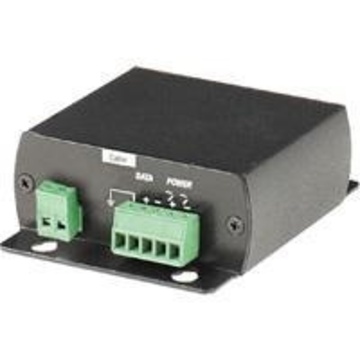

商品型號: SP004VPD
視頻、電源、控制信號湧浪保護器
商品規格:
- 設備端:4芯插拔端子+2芯插拔端子,線材端:5芯插拔端子+2芯插拔端子
- 兩段式保護: AC/DC 130V(電源),AC/DC 12V (影像)
- 最大輸入電壓:AC40V(最大),DC 56V(最大)
- 適用攝影機之電流源最大2A
- 雙絞線傳輸器設計可保護影像、電源及控制信號
- 可透過兩組控制信號及一組電源做為控制信號保護應用
Product ID: SP004VPD
UTP Video, Power, Data Surge Protection
Specifications:
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
- Performs a different function than grounding requirements.
- Protects equipment from high voltage surges from nearby lightning strikes.
- Two stage protection: 130V, AC/DC 12V
- Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video camera, monitors, multiplexers & Quad processor, VCR, etc.
- Terminal connector to terminal connector.
- Perfect for PTZ camera protection.
- Two stage protection, AC/DC 130V, AC/DC 12V.
- Max power input AC 40V(MAX), DC 56V(MAX).
- Max current up to 2Amp.
- Application for UTP cabling video, power, data protection.
- Could be two data, one power for access control application.
|
|
|
|
|
