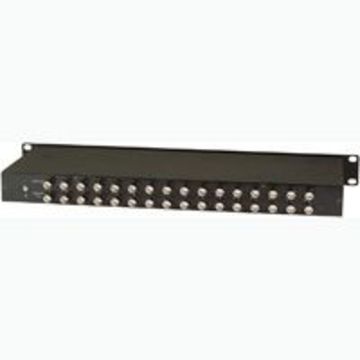

16路1U機架式同軸線傳輸專用避雷器(BNC母座轉BNC母座)
商品型號: SP016C
同軸傳輸設備用19” 1U機架式防雷器
商品規格:
- 設備端、線材端:各16 個RJ45+接地螺絲
- 保護DVR,多路處理器和四路分割器或任何多路影像輸入設備
Product ID: SP016C
Video Surge Protector for DVR in 1U Rack Mounting Panel
Specifications:
Application for protects equipment from high voltage surges such as lightning strikes. UL grounding requirements for coaxial cable offer protection from hazardous voltages that may occur on the shielding. Because of the physical length of ground wires, UL grounding systems may appear as an open circuit to lightning caused, high frequency surges and provide no protection from these surges getting into a home and destroying CATV converters, TV sets, VCR, Camera etc.
Features:
- Performs a different function than grounding requirements.
- Protects equipment from high voltage surges from nearby lightning strikes.
- Two stage protection: under100ns – 90V, over 100ns-12V.
- Wide range of applications: CCTV system, Antenna of Television, satellite receivers, FM receivers, video
|
|
|
