商品型號: SP016P
16路POE以太網供電電湧保護器
商品規格:
- 設備端、線材端:各16 個RJ45 + 接地螺絲
- 保護16路PoE 設備
- 支援10/100/1000 Mbps
- 支援Mid-Span及End-Span
- 支援802.3af PoE
商品特點:
- 每埠保護8條數據線。
- 每埠采模塊化設計,方便更換。
|

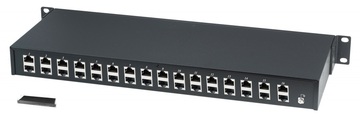

Product ID: SP016P
16 Channel POE Surge Protector for POE Hub in 1U Rack Mounting Panel
Specifications:
● Respective Peak Off - StageVoltage VDRM@IDRM=5μ: 58V
● Switching Voltage VS@100V: 77 V
● Minimum Holding Current: 150 IH mA
● Switching Current: 800 Is mA
● On Stage Current: 2.2 IT A
● Operating Temperature -40 to 85 °C
● Connectors: 16 x RJ45 to 16 RJ45
● Dimension: 483x170x 44mm standard 1U Rack Panel
● Weight: 2200 g
Features:
16 x RJ45 Jack to 16x RJ45 Jack
Application for 16 channel POE hub (Power over Ethernet) protection.
10/100/1000 Base-T CAT5/CAT5e compatible.
Support Mid-Span POE and End Span POE.
802.3af POE compatible.
|
