首頁 > 宜大-CCTV/CATV寬頻.照明安全監控及電源管理.網通等器材 > YSCT-雙絞線同軸電纜影像聲音傳輸器材設備 > YSCT-電源供應器系列

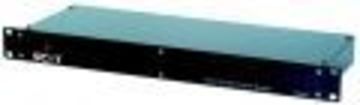

.jpg "PR801 標準1U 單路機架式8A AC 24V交流電源供應器 8 Amp 1 Port AC24V Power Supply in 1U Rack Mounting Panel")
YSCT-PR801
商品型號: PR801
標準1U 單路機架式8A AC 24V交流電源供應器
商品規格:
- 電源輸入: AC 120/230V
- 電源輸出: AC 24V / 8A (最大) 。
- 內置短路保護PTC電源自動回復
- 使用環型變壓器效率佳溫度低安全性高
Product ID: PR801
8 Amp 1 Port AC24V Power Supply in 1U Rack Mounting Panel
Specifications:
PR801 is AC24V (Non-Regulated) 8AMP power supply in 19” standard 1U rack mounting cabinet. It is perfect to install in the control room. Application for larger industry CCTV installation where need numbers of camera, housing, pan tilt turning device or other surveillance equipments power sources from control room.
Features:
- One port power supply. AC120/230V to AC24V / 8A (Max) output.
- Built in “no fuse breaker” to avoid current overload.
ITEM NO. PR801 Port 1 Output Voltage AC 24V Output Current 8A Output Trip Current X Short Cut Time 1 Sec Cut Current / Time X Reset able Output MENU Reset able Output Time X Total Output Current 8A (Max) DIMESIONS W × H × D mm 437×170×44 WEIGHT kg. 4 STORAGE TEMPERATURE -30℃~70℃ OPERATION TEMPERATURE -10℃~45℃ 2024/5/3 上午 02:37:33
.jpg)
