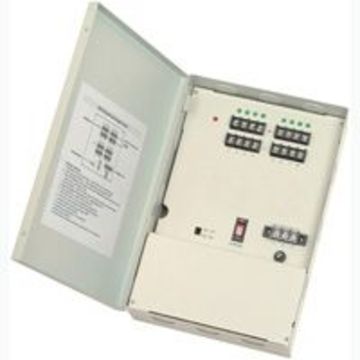

壁掛式 穩壓 DC12V 4A 8路電源供應器 內建3A電池 (UPS 不斷電)
4Amp 8 port DC12V Regulated Wall Mounting Power Supply Built in 3AMP Back up Battery
品型號: PW408U
壁掛式4A DC 12V穩壓不斷電保護電源供應器
商品規格:
- 內置3.3A備用充電電池供電源中斷使用
- 電源中斷時自動切換由電池供電
- 電池充電狀態LED燈顯示:充電中黃燈、電源足綠燈、電源中斷紅燈、電源不足紅燈閃爍
|
Product ID: PW408U
4 Amp 8 port DC12V Regulated Wall Mounting Power Supply Built in 3AMP Back up Battery
Specifications:
- 4AMP�� 8 Port Voltage output
- Green LED ON: Output ok, LED not light: output failed (check LOAD)
- Red LED ON: Major power supply normal, LED not light��Major power supply not normal (check output: power switch or fuse)
- Input AC Voltage�� 100V ~ 240V, L = Live Wire, N = Neutral Wire, E = Earth Wire.
- Output Voltage load: 12VDC Regulated at 4AMP. (Recharge Battery status: 3.5AMP Max.)
- Individual current protection: 1.1A, (2.5A/4sec.)
- Max Output Current: 4AMP (1CH~8CH)
- Individual output: standard output current 1AMP
- Individual PTC output protection.
- Individual current protection: 1.1A, (2.5A/4sec.)
- Built in surge protection
- At least need one second to auto rework after remove the overload status.
- Built in 12V 3.3AMP Rechargeable Sealed Lead Acid Battery for power back up.
- Automatic switch over to stand-by battery when AC fails.
- LED color Indication on Battery: Green: battery full, Yellow: battery recharging, Red: loss of AC, stand-by battery supplying power, Flash Red: low battery.
Features:
- PW408U: 8 Port Voltage output.
- Red LED for Main power.
- Individual Green LED for power indication.
- Individual PTC 1.1Amp, (2.5A/4sec.) fuse on each output protection.
- Toroidal transformer for high efficiency and low operating temperature.
- Built in Surge Protection
- Wall mounting metal box
- Overall Dimension: 330 x 210 x 89.5 mm
|
|
|
