    首頁 > > ALPHA-EcoWire™可充分回收利用電子線

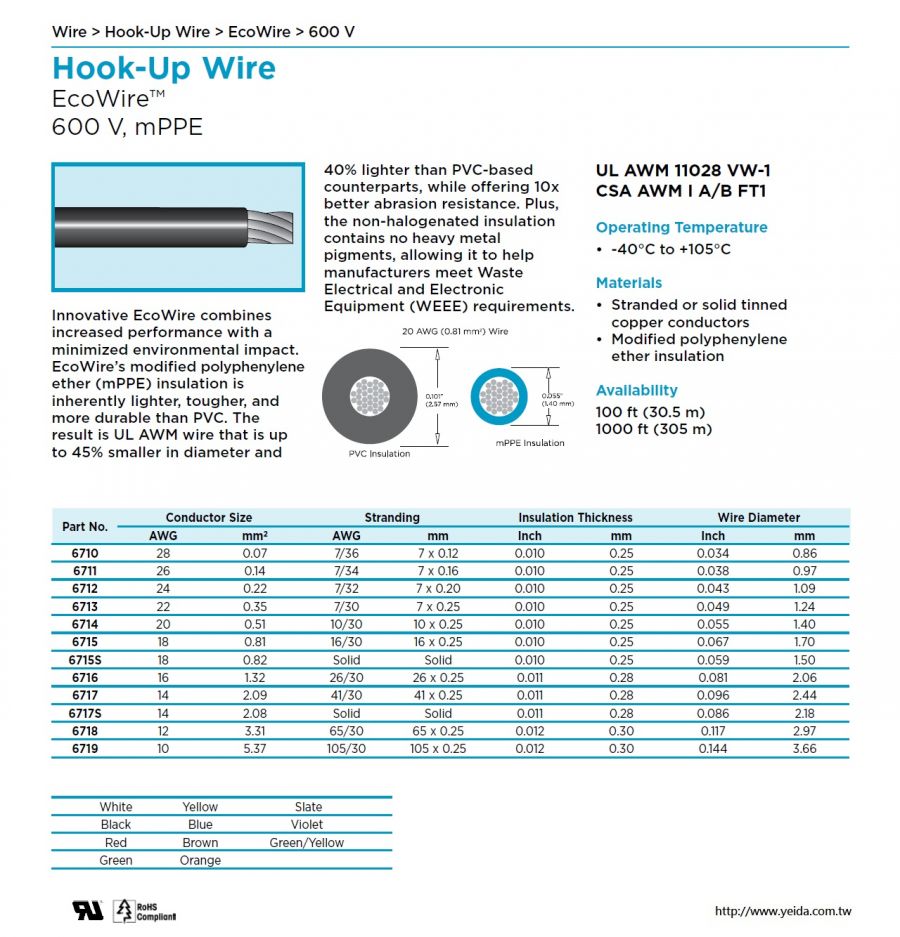

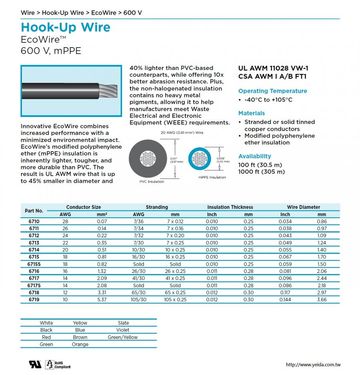

    ALPHA-UL 11028 VW-1 600 V, mPPE -40°C to +105°C EcoWire™可充分回收利用的超薄環保电子連接线
    看原圖
    ALPHA-UL11028



    商品編號: ALPHA, ideal.ohbi.net, yahoo, google

    ALPHA-UL 11028 VW-1 600 V, mPPE -40°C to +105°C EcoWire™可充分回收利用的超薄環保电子連接线



    Innovative EcoWire combines increased performance with a
    minimized environmental impact.
    EcoWire’s modified polyphenylene ether (mPPE) insulation is
    inherently lighter, tougher, and more durable than PVC. The
    result is UL AWM wire that is up to 45% smaller in diameter and
    40% lighter than PVC-based counterparts, while offering 10x
    better abrasion resistance. Plus, the non-halogenated insulation
    contains no heavy metal pigments, allowing it to help
    manufacturers meet Waste Electrical and Electronic
    Equipment (WEEE) requirements

    Alpha Wire 的EcoWire 是电子连接线的最新发明。作为真正的工程性突破,EcoWire是可以充分回收利用的电子连接线。

    EcoWire 的优势在于它独特的绝缘层——一种改良型聚丙烯乙醚(mPPE)热塑性材料。改良型聚丙烯乙醚绝缘层不含卤素和任何重金属颜料,可以确保制造商符合《废弃电气电子设备》(WEEE)的要求。

    除环保外,EcoWire 还具有许多性能优势,包括:

    •  好的绝缘强度
    •  广  适用 温度范围,符合 VW-1
    • 比重
    • 更持久耐用  耐磨损和挤压的性能提升 10 倍
    • 直径缩小达 45%
    • 重量减轻达 40%
    • 可充分回收利用

    Hook-Up Wire EcoWire™


    600 V, mPPE UL AWM 11028 VW-1
    CSA AWM I A/B FT1


    Operating Temperature
    • -40°C to +105°C


    Materials
    • Stranded or solid tinned copper conductors
    • Modified polyphenylene ether insulation


    Availability
    100 ft (30.5 m)
    1000 ft (305 m)

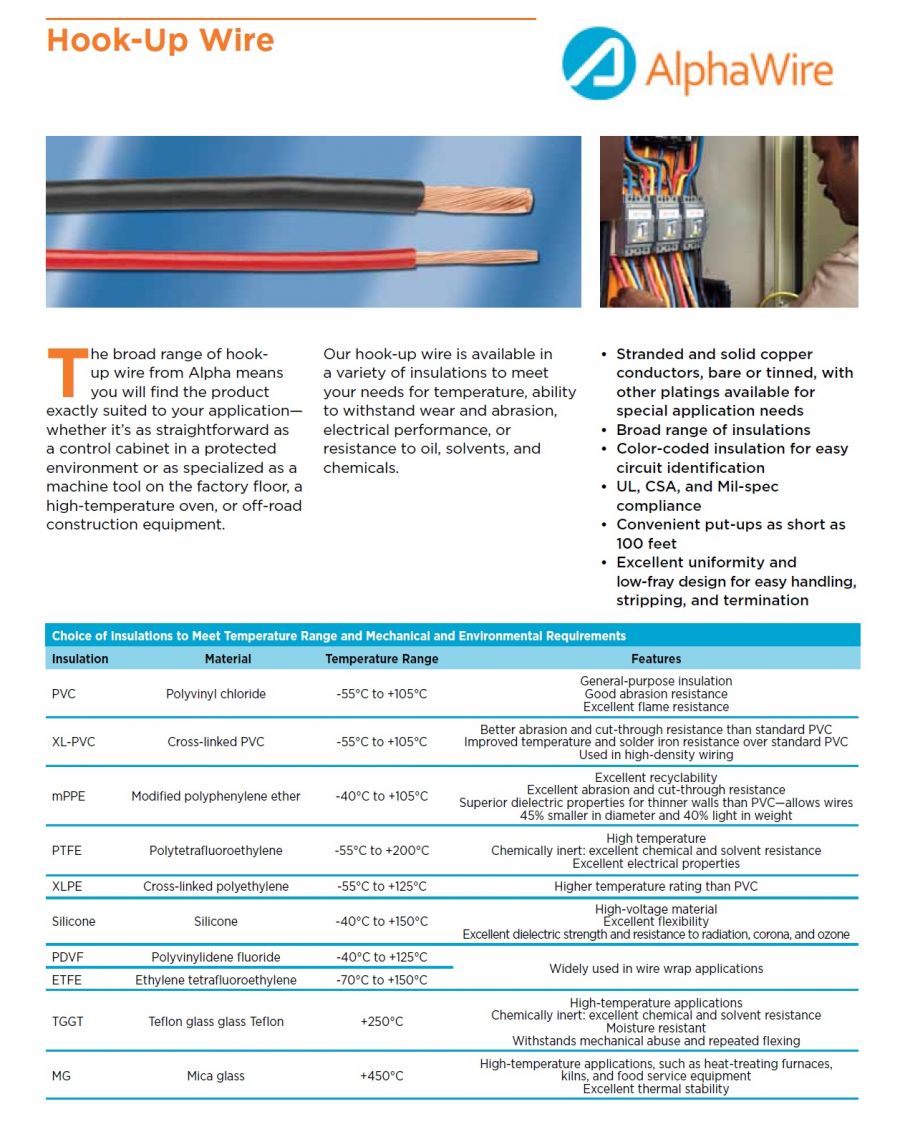

    Hook-Up Wire

    Everything you need to hook up anything

    The broad range of hook-up wire from Alpha means you will find the product exactly suited to your application—whether it’s as straightforward as a control cabinet in a protected environment or as specialized as a machine tool on the factory floor, a high-temperature oven, or off-road construction equipment.

    Key features:

    • Stranded and solid copper conductors, bare or tinned, with other platings available for special application needs
    • Color-coded insulation for easy circuit identification
    • UL, CSA, and Mil-spec compliance
    • Convenient put-ups as short as 100 feet
    • Excellent uniformity and low-fray design for easy handling, stripping, and termination
    • Broad range of insulations

    Hook-Up Wire Brochure

    Types of Hook-Up Wire
    • Hook-Up Wire

      Our broad range of high performance hook-up wire is available in a variety of insulations to meet your needs for temperature, ability to withstand wear and abrasion, electrical performance, or resistance to oil, solvents, and chemicals.

    • EcoWire™

      Alpha Wires new EcoWire is the latest innovation in hook-up wire. Non-halogenic and fully recyclable, EcoWire also offers improved performance characteristics over standard PVC-based insulation. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire is the solution.

    • EcoWire™ Plus

      Alpha Wires new EcoWire Plus is the latest innovation in hook-up wire. EcoWire Plus offers all of the environments benefits of standard EcoWire, plus additional fluid and chemical resistance. Whether you need to meet strict environmental regulations or require a smaller, more durable wire, EcoWire Plus is the solution.

    • Photovoltaic Wire

      A hook-up wire for Solar Power applications, Alpha Wires photovoltaic wire thrives in harsh environments. Offered in both UL/TÜV and UL wire requirements for your convenience.

    • Dearborn™ Bulk Hook-Up Wire

      Alpha Wire’s Dearborn™ Bulk hook-up wire is ideal for applications where long runs of hook-up wire are required. They are available with a PVC jacket and in a variety of colors.

    • Ribbon Cable

      Alpha Wire offers a variety of ribbon cabe that facilitate easier routing and termination, taking up less space than wire harness bundles.

    • Bus Bar

      Alpha Wires Bus Bar wire provides a realiable solution to keep power flowing in your vital electrical systems.






    ★★★★使用操作說明★★★★


    电子连接线

    满足您的一切连接需要

    Alpha 制造的各类电子连接线,总有一款满足您的应用需要——无论是普通到一个监控环境下的控制柜,还是专业到工厂车间里的机床、高温烘箱或现场施工设备。

    主要特点:

    • 多股绞合或实心祼铜或镀锡铜芯线,及满足特殊应用需求的其它镀层
    • 绝缘层采用不同颜色标识
    • 遵守 UL、CSA 和 Mil 规范
    • 小盘卷仅 100 英尺长,方便运输
    • 采用低磨损无差异设计,便于搬运、剥线和端接
    • 绝缘材料众多
    电子连接线宣传册
    类型电子连接线
    • 电子连接线

      我们的高性能电子连接线系列具有各种不同的绝缘,可以满足您对温度、耐磨性、电气性能、耐油性、耐溶剂性以及防腐性的要求。

    • EcoWire™

      Alpha Wire 的全新 EcoWire 是电子连接线的最新发明。它不含任何卤素,可充分回收利用,并且比标准的聚氯乙烯绝缘具有更好的特性。无论是需要遵守严格的环境法规,还是需要更小、更持久耐用的电线,EcoWire 都是最佳选择。

    • EcoWire™ Plus

      Alpha Wire 的全新 EcoWire Plus 是电子连接线的革新产品。EcoWire Plus不但具有普通EcoWire 全部保护环境的特性,而且拥有抗液体腐蚀的特性。无论你是在寻求满足严格生态环境要求的产品,还是寻求更小更轻、更持久耐用的产品,EcoWire Plus 都将是你的最终解决方案。

    • 光伏线

      作为适用于太阳能发电应用的电子连接线,Alpha Wire 的光伏线适合在各种极端环境中使用。它满足 UL/TÜV 和 UL 线缆要求,方便您使用。

    • Dearborn™ 长距离连接线

      Alpha Wire 的 Dearborn™ 长距离连接线是需要长距离布线应用的理想选择。它们采用聚氯乙烯护套,颜色多样。

    • 带状电缆

      Alpha Wire 提供各种带状电缆,更易于布线和端接,比线束占用更少的空间。

    • 汇流排

      Alpha Wire 的汇流排提供可靠的解决方案,为您的关键电气系统提供连续的电力供应。
