首頁 > ALPHA- 電線電纜專區> ALPHA-Hook Up Wire 電子線 > ALPHA-IRRPVC Soldering Iron resistant Wire

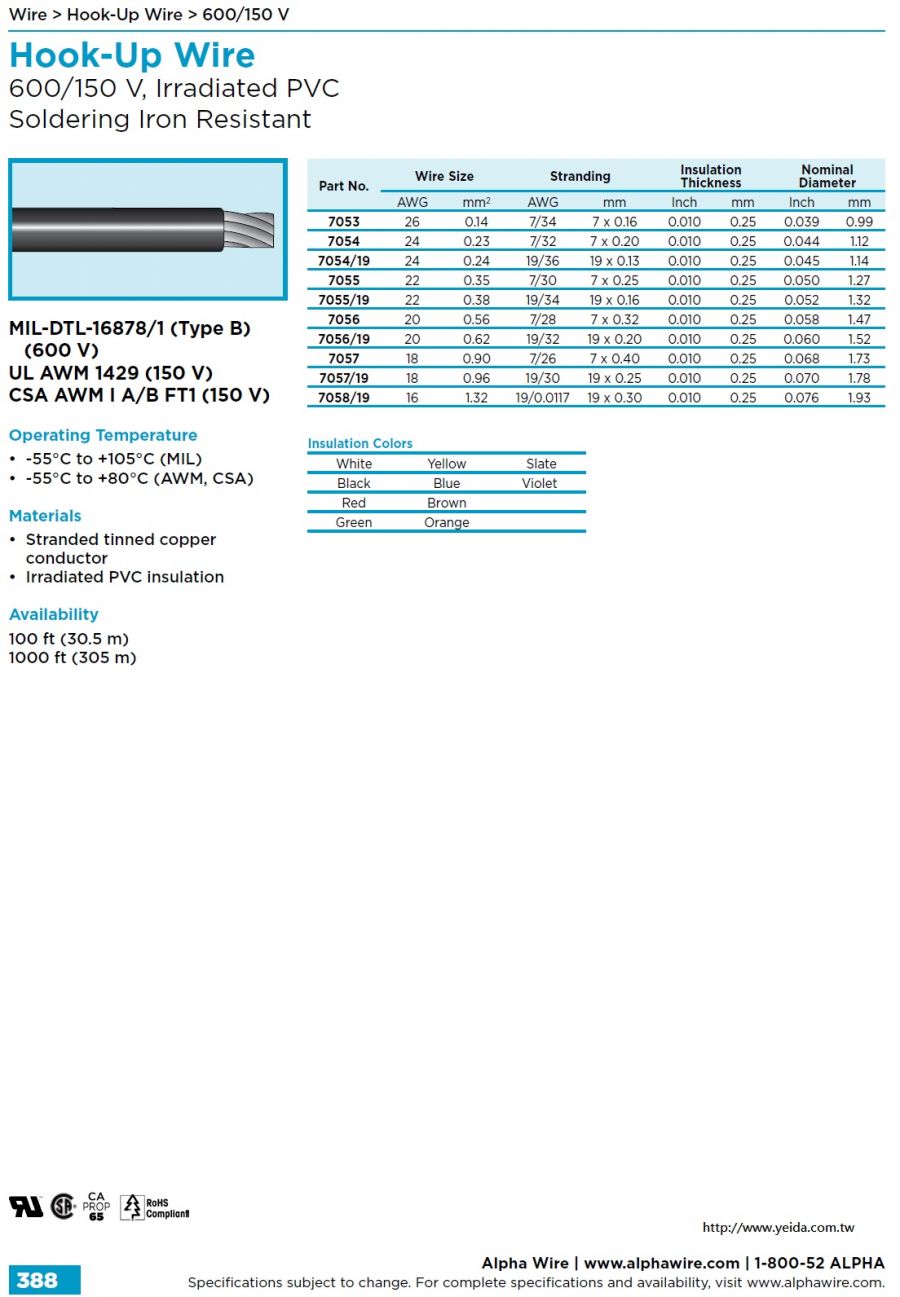

ALPHA7055 22Awg 150V IRRPVC MIL-W-16878E TYPE B, UL 1429 Soldering Iron Resistant 照射PVC電子線

ALPHA-7055

商品編號: ALPHA7053,

ALPHA-7055 22Awg 150V IRRPVC MIL-W-16878E TYPE B, UL 1429 Soldering Iron Resistant 照射PVC電子線
Alpha7053, Alpha7054, Alpha7054/19, Alpha7055, Alpha7055/19, Alpha7056, Alpha7056/19, Alpha7057, Alpha7057/19, Alpha7058/19,

600/150 V, Irradiated PVC
Soldering Iron Resistant

MIL-DTL-16878/1 (Type B)
(600 V)
UL AWM 1429 (150 V)
CSA AWM I A/B FT1 (150 V)
Operating Temperature
• -55°C to +105°C (MIL)
• -55°C to +80°C (AWM, CSA)
Materials
• Stranded tinned copper
conductor
• Irradiated PVC insulation
Availability
100 ft (30.5 m)
1000 ft (305 m)

部件号	Voltage	AWG	Stranding	Insulation Thickness	Insulation Diameter	Insulation Material	Applicable Specifications
7055	150	22	7/30	0.01	0.05	IRRPVC	CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 1429

部件号	Voltage	AWG	Stranding	Insulation Thickness	Insulation Diameter	Insulation Material	Applicable Specifications
7055	150	22	7/30	0.01	0.05	IRRPVC	CA Prop 65, CSA AWM I A/B, CSA FT1, MIL-W-16878E TYPE B, UL AWM 1429

Alpha7053, Alpha7054, Alpha7054/19, Alpha7055, Alpha7055/19, Alpha7056, Alpha7056/19, Alpha7057, Alpha7057/19, Alpha7058/19,
